Set catalog RBAC

Port provides granular control to ensure that every user only sees the parts of the catalog that are relevant to them.

Port's catalog RBAC capabilities are enabled by utilizing permissions controls.

Page permissions

In order to manage who can view certain pages in Port, check out page permissions.

Common Catalog RBAC usage

Catalog RBAC allows admins to finely control which users have access to specific information in the software catalog, for example:

• Allow a user to edit a single specific property on an entity.
• Create a fully read-only view for a developer.

Set global access controls to catalog data

The default permissions assigned to every blueprint upon creation specify that users with the admin role, and users with the specific blueprint moderator role, can perform any action on a blueprint.
See RBAC permissions for more information about the different roles.

It is possible to assign global permissions controls on entities, using these steps:

1. Go to the Builder page of your portal.

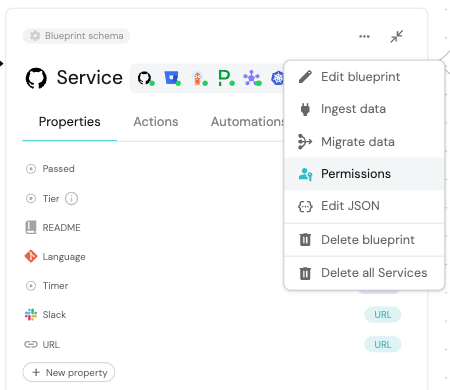

2. Select your desired blueprint, click on the ... button in the top-right corner, and select Permissions:



3. A JSON editor will open, where you can set the permissions for the blueprint.

Read

To assign permissions to read (view) an entity, give the desired persona permissions under the read object as shown below:

Role

To give read permissions to another role, add it to the roles array:

{
  "entities": {
    ... other permissions
    "read": {
      "roles": ["myBlueprint-moderator", "Admin", "Member"], // added Member
      "users": [],
      "teams": [],
      "ownedByTeam": false
    }
  }
}

User

To give read permissions to another user, add it to the users array:

{
  "entities": {
    ... other permissions
    "read": {
      "roles": ["myBlueprint-moderator", "Admin"],
      "users": ["my-user@example.com"], // added my-user@example.com
      "teams": [],
      "ownedByTeam": false
    }
  }
}

Team

To give read permissions to another team, add it to the teams array:

{
  "entities": {
    ... other permissions
    "read": {
      "roles": ["myBlueprint-moderator", "Admin"],
      "users": [],
      "teams": ["my-team"], // added my-team
      "ownedByTeam": false
    }
  }
}

Ownership

Teams can be assigned to entities, denoting the team's ownership of the entity.

To give read permissions to members of the owning team of an entity, change the ownedByTeam key:

{
  "entities": {
    ... other permissions
    "read": {
      "roles": ["myBlueprint-moderator", "Admin"],
      "users": [],
      "teams": [],
      "ownedByTeam": true // changed from false
    }
  }
}

Policy

The policy key allows you to give dynamic read permissions to users, by using search queries.

You can also use contextual query rules to get the context of the user executing the query.

In the following example, on-call users are granted read access only to entities that share the same region as one of their owning teams:

{
  "entities": {
    ... other permissions
    "read": {
      "roles": ["myBlueprint-moderator", "Admin"],
      "users": [],
      "teams": [],
      "ownedByTeam": false,
      "policy": {
        "combinator": "and",
        "rules": [
          {
            "property": {
              "context" : "user",
              "property": "isOnCall"
            },
            "operator": "=",
            "value": "true"
          },
          {
            "property": "region",
            "operator": "containsAny",
            "value": {
              "context" : "userTeams",
              "property": "region"
            }
          },
        ]
      }
    }
  }
}

Policy usage

The policy key will take effect only if the user is not affected by any other read permission keys.
For example, if the user has full read permissions or ownedByTeam permissions, this query will not take effect.

Note that assigning create, update, or delete permissions to a user or team will automatically grant them read permissions as well, as they need to be able to see the entities they are allowed to interact with.

Affected components

Setting read permissions on entities takes effect at the API level, meaning that any component in Port that fetches entities will be affected by these permissions.
For example, a table widget that displays entities will only show entities that the user has read permissions for.

Create (register)

To assign permissions to create an entity, give the desired persona permissions under the register object as shown below:

Role

To give create permissions to another role, add it to the roles array:

{
  "entities": {
    ... other permissions
    "register": {
      "roles": ["myBlueprint-moderator", "Admin", "Member"], // added Member
      "users": [],
      "teams": [],
      "ownedByTeam": false
    }
  }
}

User

To give create permissions to another user, add it to the users array:

{
  "entities": {
    ... other permissions
    "register": {
      "roles": ["myBlueprint-moderator", "Admin"],
      "users": ["my-user@example.com"], // added my-user@example.com
      "teams": [],
      "ownedByTeam": false
    }
  }
}

Team

To give create permissions to another team, add it to the teams array:

{
  "entities": {
    ... other permissions
    "register": {
      "roles": ["myBlueprint-moderator", "Admin"],
      "users": [],
      "teams": ["my-team"], // added my-team
      "ownedByTeam": false
    }
  }
}

Ownership

Teams can be assigned to entities, denoting the team's ownership of the entity.

To give create permissions to members of the owning team of an entity, change the ownedByTeam key:

{
  "entities": {
    ... other permissions
    "register": {
      "roles": ["myBlueprint-moderator", "Admin"],
      "users": [],
      "teams": [],
      "ownedByTeam": true // changed from false
    }
  }
}

tip

In the context of the create permission, owned by team means that a user can only create a new entity if he assigns to it a team that he is a member of.

Update

To assign permissions to update an entity, give the desired persona permissions under the update object as shown below:

Role

To give update permissions to another role, add it to the roles array:

{
  "entities": {
    ... other permissions
    "update": {
      "roles": ["myBlueprint-moderator", "Admin", "Member"], // added Member
      "users": [],
      "teams": [],
      "ownedByTeam": false
    }
  }
}

User

To give update permissions to another user, add it to the users array:

{
  "entities": {
    ... other permissions
    "update": {
      "roles": ["myBlueprint-moderator", "Admin"],
      "users": ["my-user@example.com"], // added my-user@example.com
      "teams": [],
      "ownedByTeam": false
    }
  }
}

Team

To give update permissions to another team, add it to the teams array:

{
  "entities": {
    ... other permissions
    "update": {
      "roles": ["myBlueprint-moderator", "Admin"],
      "users": [],
      "teams": ["my-team"], // added my-team
      "ownedByTeam": false
    }
  }
}

Ownership

Teams can be assigned to entities, denoting the team's ownership of the entity.

To give update permissions to members of the owning team of an entity, change the ownedByTeam key:

{
  "entities": {
    ... other permissions
    "update": {
      "roles": ["myBlueprint-moderator", "Admin"],
      "users": [],
      "teams": [],
      "ownedByTeam": true // changed from false
    }
  }
}

Delete (unregister)

To assign permissions to delete an entity, give the desired persona permissions under the delete object as shown below:

Role

To give delete permissions to another role, add it to the roles array:

{
  "entities": {
    ... other permissions
    "unregister": {
      "roles": ["myBlueprint-moderator", "Admin", "Member"], // added Member
      "users": [],
      "teams": [],
      "ownedByTeam": false
    }
  }
}

User

To give delete permissions to another user, add it to the users array:

{
  "entities": {
    ... other permissions
    "unregister": {
      "roles": ["myBlueprint-moderator", "Admin"],
      "users": ["my-user@example.com"], // added my-user@example.com
      "teams": [],
      "ownedByTeam": false
    }
  }
}

Team

To give delete permissions to another team, add it to the teams array:

{
  "entities": {
    ... other permissions
    "unregister": {
      "roles": ["myBlueprint-moderator", "Admin"],
      "users": [],
      "teams": ["my-team"], // added my-team
      "ownedByTeam": false
    }
  }
}

Ownership

Teams can be assigned to entities, denoting the team's ownership of the entity.

To give delete permissions to members of the owning team of an entity, change the ownedByTeam key:

{
  "entities": {
    ... other permissions
    "unregister": {
      "roles": ["myBlueprint-moderator", "Admin"],
      "users": [],
      "teams": [],
      "ownedByTeam": true // changed from false
    }
  }
}

Set granular access controls to catalog data

It is possible to assign more granular permissions controls on entities, allowing you to prevent users from editing certain properties or relations.

Update specific property

To assign permissions to update a specific entity property, give the desired persona permissions under the updateProperties -> propertyName object as shown below:

Role

To give property update permissions to another role, add it to the roles array:

{
  "entities": {
    ... other permissions
    "updateProperties": {
      "myProperty": {
        "roles": ["myBlueprint-moderator", "Admin", "Member"], // added Member
        "users": [],
        "teams": [],
        "ownedByTeam": false
      }
    }
  }
}

User

To give property update permissions to another user, add it to the users array:

{
  "entities": {
    ... other permissions
    "updateProperties": {
      "myProperty": {
        "roles": ["myBlueprint-moderator", "Admin"],
        "users": ["my-user@example.com"], // added my-user@example.com
        "teams": [],
        "ownedByTeam": false
      }
    }
  }
}

Team

To give property update permissions to another team, add it to the teams array:

{
  "entities": {
    ... other permissions
    "updateProperties": {
      "myProperty": {
        "roles": ["myBlueprint-moderator", "Admin"],
        "users": [],
        "teams": ["my-team"], // added my-team
        "ownedByTeam": false
      }
    }
  }
}

Ownership

Teams can be assigned to entities, denoting the team's ownership of the entity.

To give property update permissions to members of the owning team of an entity, change the ownedByTeam key:

{
  "entities": {
    ... other permissions
    "updateProperties": {
      "myProperty": {
        "roles": ["myBlueprint-moderator", "Admin"],
        "users": [],
        "teams": [],
        "ownedByTeam": true // changed from false
      }
    }
  }
}

Update specific relation

To assign permissions to update a specific entity relation, give the desired persona permissions under the updateRelations -> relationName object as shown below:

Role

To give relation update permissions to another role, add it to the roles array:

{
  "entities": {
    ... other permissions
    "updateRelations": {
      "myRelation": {
        "roles": ["myBlueprint-moderator", "Admin", "Member"], // added Member
        "users": [],
        "teams": [],
        "ownedByTeam": false
      }
    }
  }
}

User

To give relation update permissions to another user, add it to the users array:

{
  "entities": {
    ... other permissions
    "updateRelations": {
      "myRelation": {
        "roles": ["myBlueprint-moderator", "Admin"],
        "users": ["my-user@example.com"], // added my-user@example.com
        "teams": [],
        "ownedByTeam": false
      }
    }
  }
}

Team

To give relation update permissions to another team, add it to the teams array:

{
  "entities": {
    ... other permissions
    "updateRelations": {
      "myRelation": {
        "roles": ["myBlueprint-moderator", "Admin"],
        "users": [],
        "teams": ["my-team"], // added my-team
        "ownedByTeam": false
      }
    }
  }
}

Ownership

Teams can be assigned to entities, denoting the team's ownership of the entity.

To give relation update permissions to members of the owning team of an entity, change the ownedByTeam key:

{
  "entities": {
    ... other permissions
    "updateRelations": {
      "myRelation": {
        "roles": ["myBlueprint-moderator", "Admin"],
        "users": [],
        "teams": [],
        "ownedByTeam": true // changed from false
      }
    }
  }
}

Software catalog RBAC examples

Refer to the examples page for practical examples of Port's RBAC.

FAQ

Since the catalog RBAC can be very granular, in some instances it might not be perfectly clear what the resulting assigned permissions would do, this part aims to provide some real-world examples and the behavior of Port's RBAC in those instances.

What happens if a user lacks the permissions to edit a required property of the blueprint?

In this case the user will not be able to register or update entities as a whole because they can't provide a value for the required property.

What happens if the ownedByTeam setting is enabled for entity registration, but the user can't edit the team property?

In this case the user will not be able to register a new entity since they can't select a value for the entity's team field and mark it as owned by their team.
