Approval Workflows for Service Deployment

This guide demonstrates the power and flexibility of chaining self-service actions and automations in Port to deploy a service. The deployment process is integrated with GitLab pipelines and ServiceNow for handling approval workflows when thresholds are violated.

Use-case​

  • A developer initiates a deployment via Port's SSA, triggering a GitLab pipeline.
  • Pipeline stages: build, test, and deploy.
  • If code coverage in test stage meets the threshold, deployment proceeds.

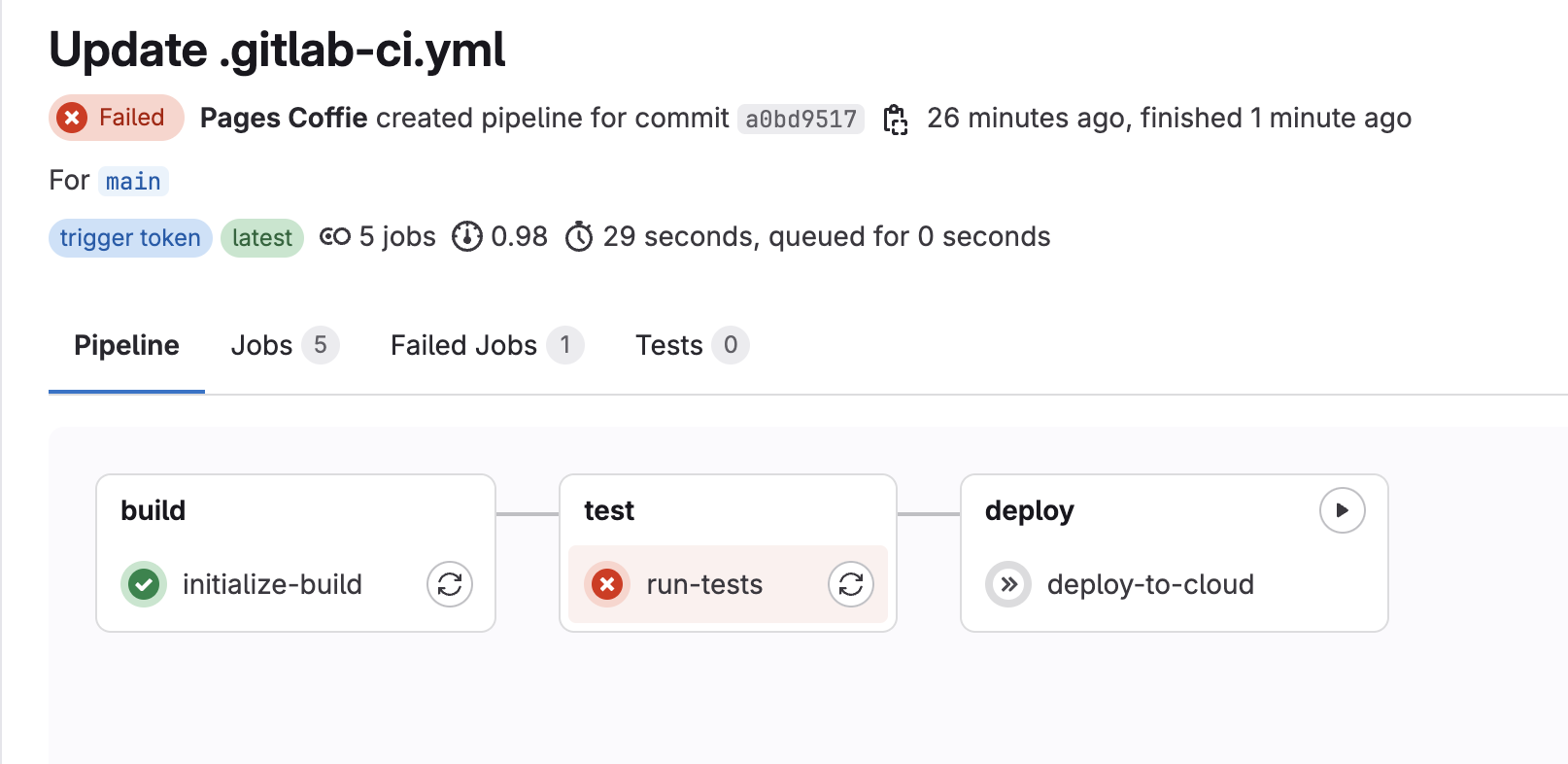

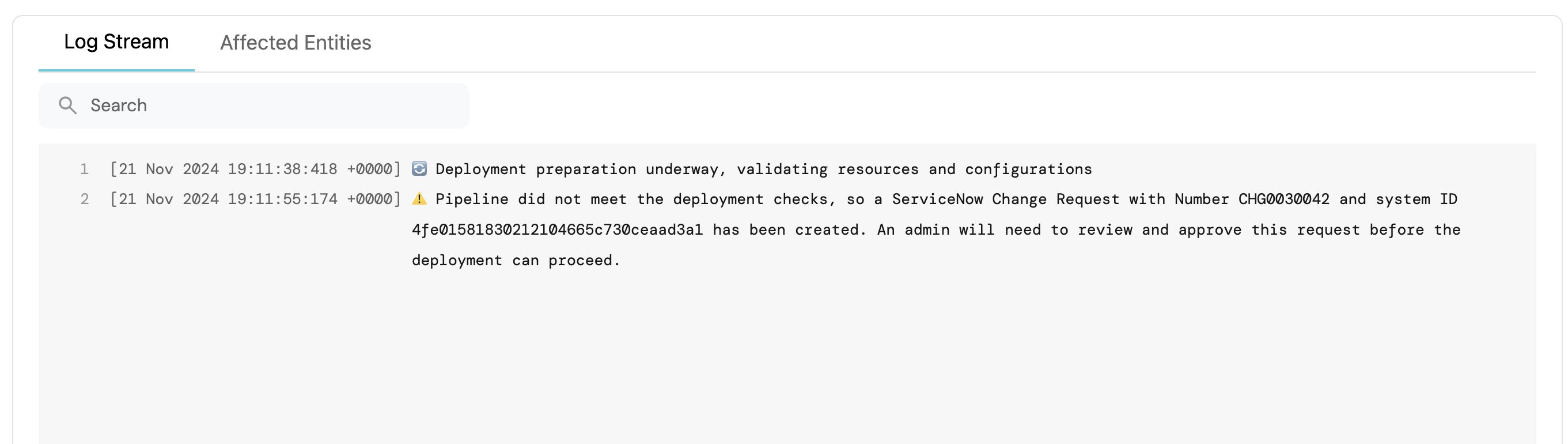

  • If coverage fails, a ServiceNow Change Request (CR) is created.
  • A Platform Engineer can approve or decline the CR in Port.
  • CR decisions in ServiceNow UI trigger Port automation to update the pipeline.

Prerequisites​

  • Port account: If you don't have a Port account, you will need to create one.
  • GitLab environment: This guide includes the creation of actions and automations that use a GitLab pipeline as their backend.
  • ServiceNow instance access: You need admin or developer-level access.
  • Create the following GitLab secrets:
    • PORT_CLIENT_ID - Your port client id.
    • PORT_CLIENT_SECRET - Your port client secret.
    • SERVICENOW_INSTANCE_URL - The ServiceNow instance URL. For example https://example-id.service-now.com.
    • SERVICENOW_API_TOKEN - A base64 encoded string of your servicenow credentials generated as <username>:<password>.
    • Create a secret in Port named SERVICENOW_API_TOKEN with the base64 token content

Data Model​

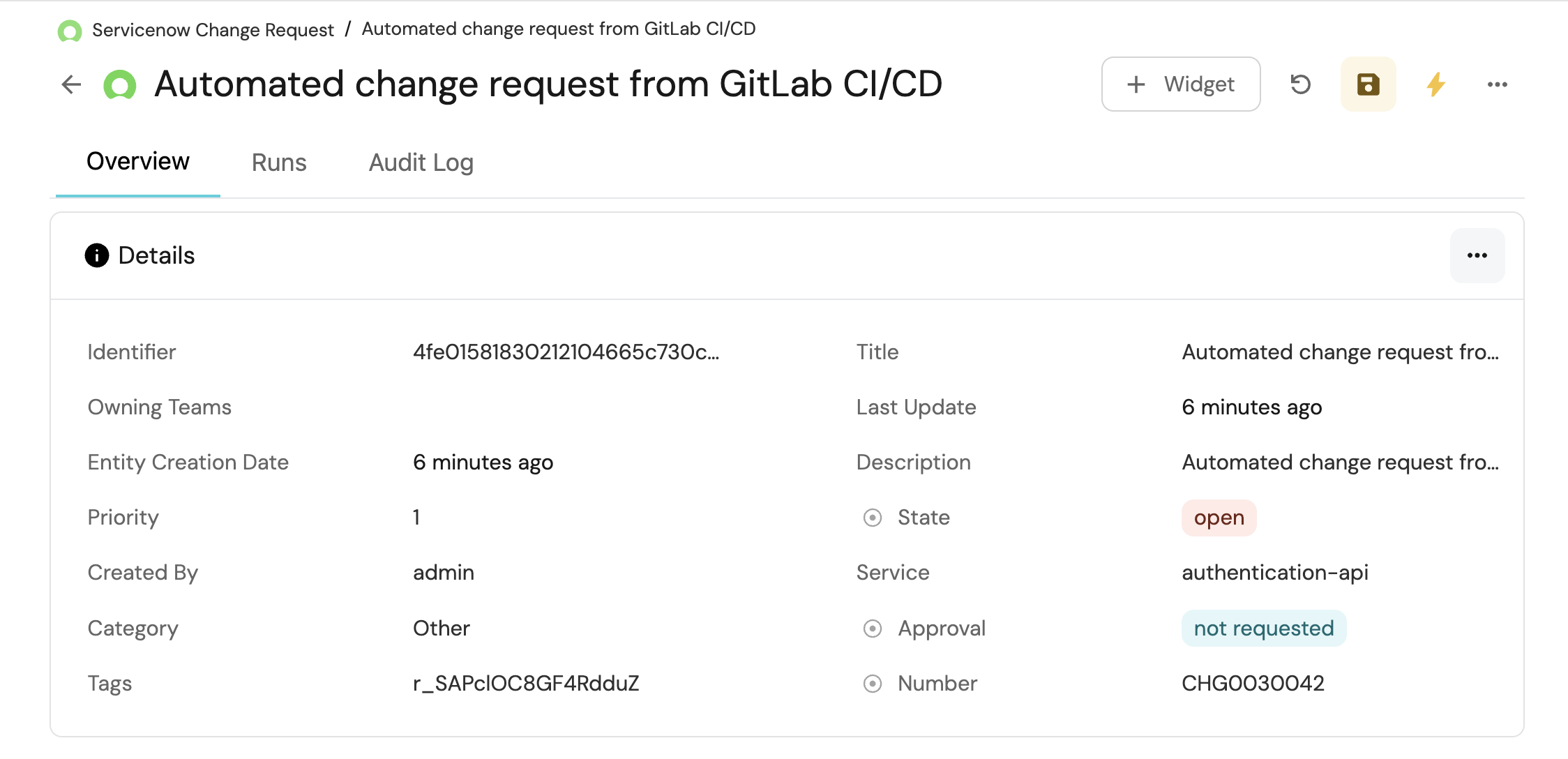

Define a new blueprint in Port for the change request entity using the following JSON definition:

ServiceNow change request (click to expand)
{
  "identifier": "servicenowChangeRequest",
  "title": "Servicenow Change Request",
  "icon": "Servicenow",
  "schema": {
    "properties": {
      "number": {
        "title": "Change Number",
        "type": "string"
      },
      "description": {
        "title": "Description",
        "type": "string"
      },
      "isActive": {
        "title": "Is active",
        "type": "boolean"
      },
      "priority": {
        "title": "Priority",
        "type": "string"
      },
      "state": {
        "icon": "DefaultProperty",
        "title": "State",
        "type": "string"
      },
      "createdOn": {
        "title": "Created On",
        "type": "string",
        "format": "date-time"
      },
      "createdBy": {
        "title": "Created By",
        "type": "string"
      },
      "service": {
        "type": "string",
        "title": "Service"
      },
      "category": {
        "type": "string",
        "title": "Category"
      },
      "approval": {
        "title": "Approval",
        "icon": "DefaultProperty",
        "type": "string",
        "enum": [
          "approved",
          "not requested",
          "requested",
          "rejected"
        ],
        "enumColors": {
          "approved": "green",
          "not requested": "turquoise",
          "requested": "yellow",
          "rejected": "pink"
        }
      },
      "externalTags": {
        "type": "string",
        "title": "External Tags"
      }
    },
    "required": []
  },
  "mirrorProperties": {},
  "calculationProperties": {},
  "aggregationProperties": {},
  "relations": {}
}
Add a New Column to the Change Request Table

Add a new column named external_tags to your change_request table in ServiceNow to associate deployment requests with their corresponding Port context.
Follow the ServiceNow documentation to complete this step.

Actions & automations​

This workflow uses three self-service actions and two automations to manage the deployment of service and approval of change request.

Self-service actions​

Go to the self-service page of your portal and create the following actions using the JSON definitions below:

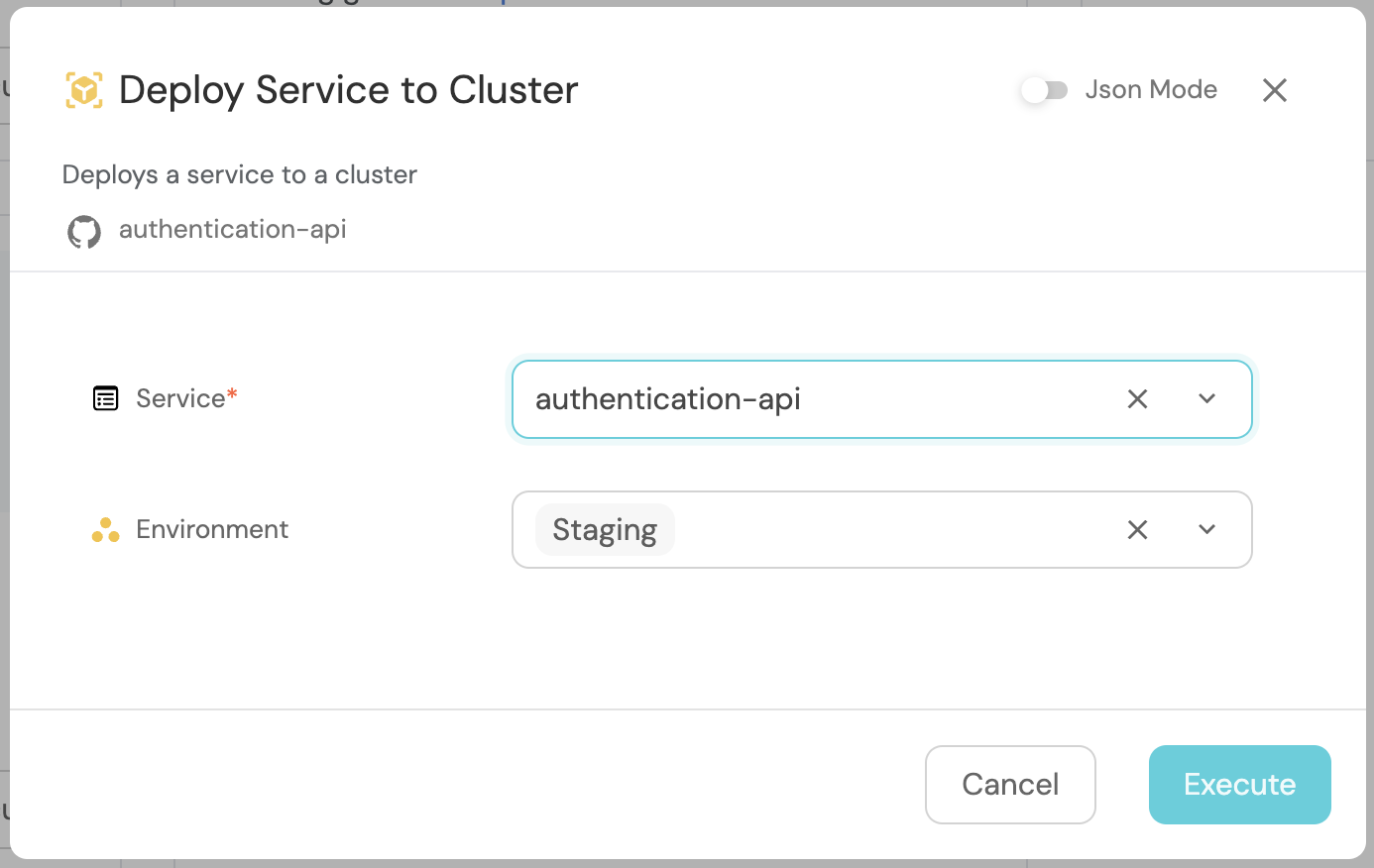

This action can be executed by a developer to request the deployment of a service.

Request deployment of service (click to expand)

This action uses the WEBHOOK backend type, which directly invokes the pre_deployment_check action to trigger the GitLab pipeline. It passes a required deploy_run_id param to the request object for the purpose of streaming logs between the two actions.

  {
  "identifier": "deploy_service_to_cluster",
  "title": "Deploy Service to Cluster",
  "icon": "Deployment",
  "description": "Deploys a service to a cluster",
  "trigger": {
      "type": "self-service",
      "operation": "DAY-2",
      "userInputs": {
      "properties": {
          "environment": {
          "type": "string",
          "title": "Environment",
          "icon": "Environment",
          "default": "Staging",
          "enum": [
              "Development",
              "Staging",
              "Production"
          ],
          "enumColors": {
              "Development": "lightGray",
              "Staging": "lightGray",
              "Production": "lightGray"
          }
          }
      },
      "required": [],
      "order": []
      },
      "blueprintIdentifier": "service"
  },
  "invocationMethod": {
      "type": "WEBHOOK",
      "url": "${PORT_API_URL}/actions/pre_deployment_check/runs",
      "agent": false,
      "synchronized": false,
      "method": "POST",
      "headers": {
      "RUN_ID": "{{ .run.id }}"
      },
      "body": {
      "properties": {
          "deploy_run_id": "{{ .run.id }}",
          "{{ spreadValue() }}": "{{ .inputs }}",
          "runId": "{{ .run.id }}",
          "blueprint": "{{ .action.blueprint }}",
          "entity": "{{ .entity.identifier }}"
      }
      }
  },
  "requiredApproval": false
  }

This action triggers the GitLab pipeline which contains the deployment logic and streams log back to the deploy_service_to_cluster action in Port.

Pre deployment checks (click to expand)

Remember to replace the GITLAB_PROJECT_ID and GITLAB_TRIGGER_TOKEN placeholders with your values.
To learn how to obtain these values, see the GitLab backend documentation.

  {
  "identifier": "pre_deployment_check",
  "title": "Pre Deployment Check",
  "icon": "Deployment",
  "description": "Pre Deployment checks and change request creator",
  "trigger": {
      "type": "self-service",
      "operation": "CREATE",
      "userInputs": {
      "properties": {
          "deploy_run_id": {
          "type": "string",
          "title": "Deploy Run Id"
          }
      },
      "required": [],
      "order": []
      }
  },
  "invocationMethod": {
      "type": "WEBHOOK",
      "url": "https://gitlab.com/api/v4/projects/{GITLAB_PROJECT_ID}/ref/main/trigger/pipeline?token={GITLAB_TRIGGER_TOKEN}",
      "agent": false,
      "synchronized": false,
      "method": "POST",
      "headers": {
      "RUN_ID": "{{ .run.id }}"
      },
      "body": {
      "{{ spreadValue() }}": "{{ .inputs }}",
      "approval_status": "pending",
      "port_context": {
          "runId": "{{ .run.id }}"
      }
      }
  },
  "requiredApproval": false
  }

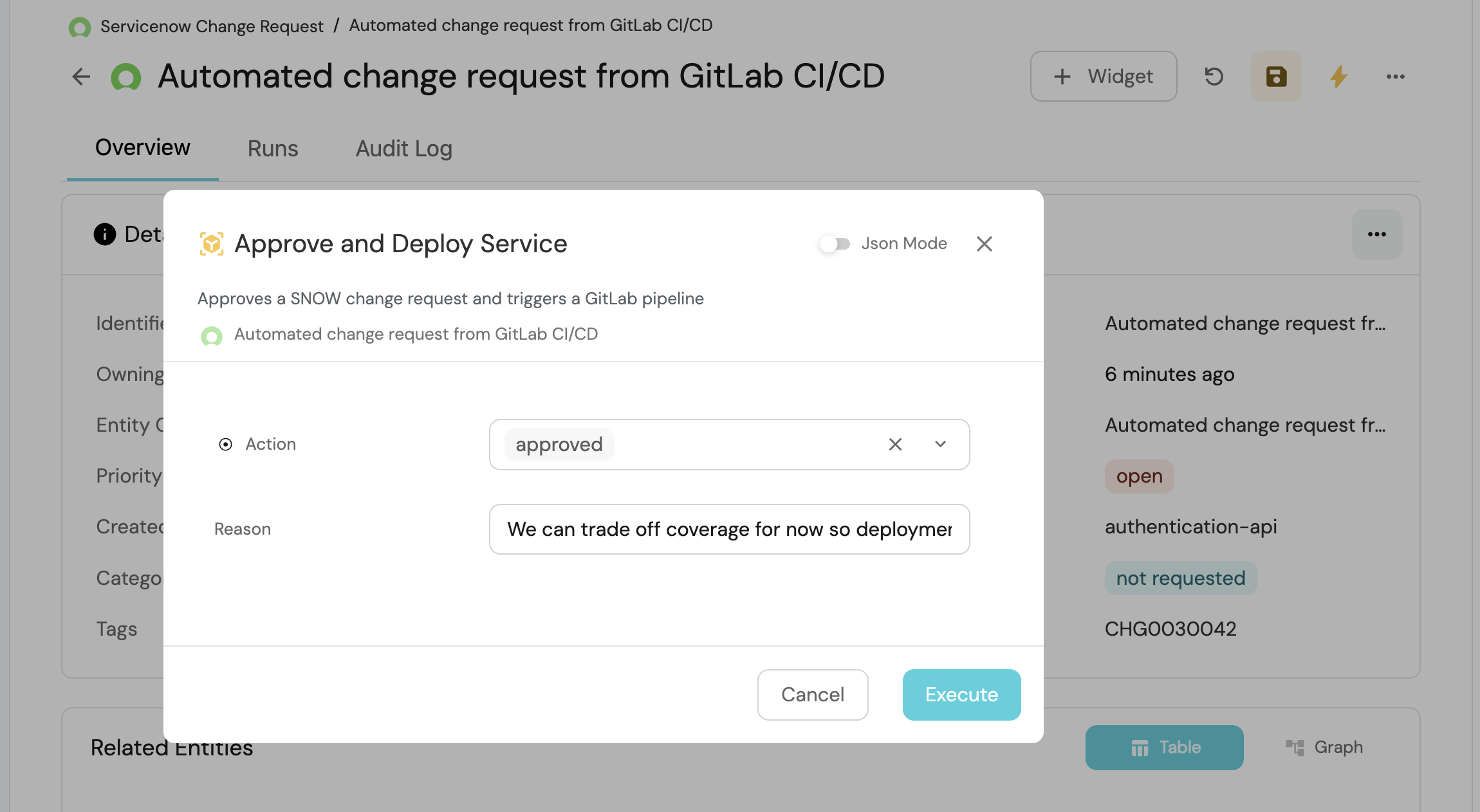

This action can be executed by an admin to approve the change request. It triggers the GitLab pipeline and updates the status of the servicenowChangeRequest entity in ServiceNow to "approved/rejected".

Approve change request (click to expand)

Remember to replace the GITLAB_PROJECT_ID and GITLAB_TRIGGER_TOKEN placeholders with your values.
To learn how to obtain these values, see the GitLab backend documentation.

  {
  "identifier": "approve_and_deploy_service",
  "title": "Approve and Deploy Service",
  "icon": "Deployment",
  "description": "Approves a ServiceNow change request and triggers a GitLab pipeline",
  "trigger": {
      "type": "self-service",
      "operation": "DAY-2",
      "userInputs": {
      "properties": {
          "reason": {
          "type": "string",
          "title": "Reason"
          },
          "approval_status": {
          "icon": "DefaultProperty",
          "title": "Action",
          "type": "string",
          "default": "approved",
          "enum": [
              "approved",
              "declined"
          ],
          "enumColors": {
              "approved": "lightGray",
              "declined": "lightGray"
          }
          }
      },
      "required": [],
      "order": [
          "approval_status",
          "reason"
      ]
      },
      "blueprintIdentifier": "servicenowChangeRequest"
  },
  "invocationMethod": {
      "type": "WEBHOOK",
      "url": "https://gitlab.com/api/v4/projects/{GITLAB_PROJECT_ID}/ref/main/trigger/pipeline?token={GITLAB_TRIGGER_TOKEN}",
      "agent": false,
      "synchronized": false,
      "method": "POST",
      "headers": {
      "RUN_ID": "{{ .run.id }}"
      },
      "body": {
      "{{ spreadValue() }}": "{{ .inputs }}",
      "port_context": {
          "runId": "{{ .run.id }}"
      },
      "deploy_run_id": "{{ .entity.properties.externalTags }}",
      "system_id": "{{ .entity.identifier }}"
      }
  },
  "requiredApproval": false
  }

Automations​

Go to the automations page of your portal, then create the following automations using the JSON definitions below:

This automation is triggered when a run of type approve_and_deploy_service action is created. It's purpose is to patch the approval field in ServiceNow to approved or rejected.

Patch change request in ServiceNow (click to expand)

Remember to replace the SERVICENOW_INSTANCE placeholders with your values.

  {
  "identifier": "updateChangeRequestInSnow",
  "title": "Patch Change Request in ServiceNow",
  "description": "Sends a PATCH request to serviceNow when the admin approves or declines the change request",
  "trigger": {
      "type": "automation",
      "event": {
      "type": "RUN_CREATED",
      "actionIdentifier": "approve_and_deploy_service"
      }
  },
  "invocationMethod": {
      "type": "WEBHOOK",
      "url": "https://{SERVICENOW_INSTANCE}/api/now/table/change_request/{{ .event.diff.after.entity.identifier }}",
      "agent": false,
      "synchronized": true,
      "method": "PATCH",
      "headers": {
      "Authorization": "Basic {{ .secrets.SERVICENOW_API_TOKEN }}"
      },
      "body": {
      "approval": "{{ .event.diff.after.properties.approval_status  }}"
      }
  },
  "publish": true
  }

This automation is triggered when a servicenowChangeRequest is updated to "approved" or "rejected"

Trigger Gitlab pipeline from webhook listener (click to expand)

Remember to replace the GITLAB_PROJECT_ID and GITLAB_TRIGGER_TOKEN placeholders with your values

  {
  "identifier": "approveSnowPipeline",
  "title": "Approve or Deny GitLab Pipeline from SNOW",
  "trigger": {
      "type": "automation",
      "event": {
      "type": "ENTITY_UPDATED",
      "blueprintIdentifier": "servicenowChangeRequest"
      },
      "condition": {
      "type": "JQ",
      "expressions": [
          ".diff.after.properties.approval == \"approved\"",
          ".diff.after.properties.approval == \"rejected\""
      ],
      "combinator": "or"
      }
  },
  "invocationMethod": {
      "type": "WEBHOOK",
      "url": "https://gitlab.com/api/v4/projects/{GITLAB_PROJECT_ID}/ref/main/trigger/pipeline?token={GITLAB_TRIGGER_TOKEN}",
      "agent": false,
      "synchronized": false,
      "method": "POST",
      "headers": {
      "RUN_ID": "{{ .run.id }}"
      },
      "body": {
      "port_context": {
          "runId": "{{ .run.id }}"
      },
      "approval_status": "{{ .event.diff.after.properties.approval  }}",
      "system_id": "{{ .event.diff.after.identifier  }}",
      "deploy_run_id": "{{ .event.diff.after.properties.externalTags }}"
      }
  },
  "publish": true
  }
configure webhooks in ServiceNow

Follow our documentation to learn how to configure webhooks in ServiceNow

GitLab pipeline script​

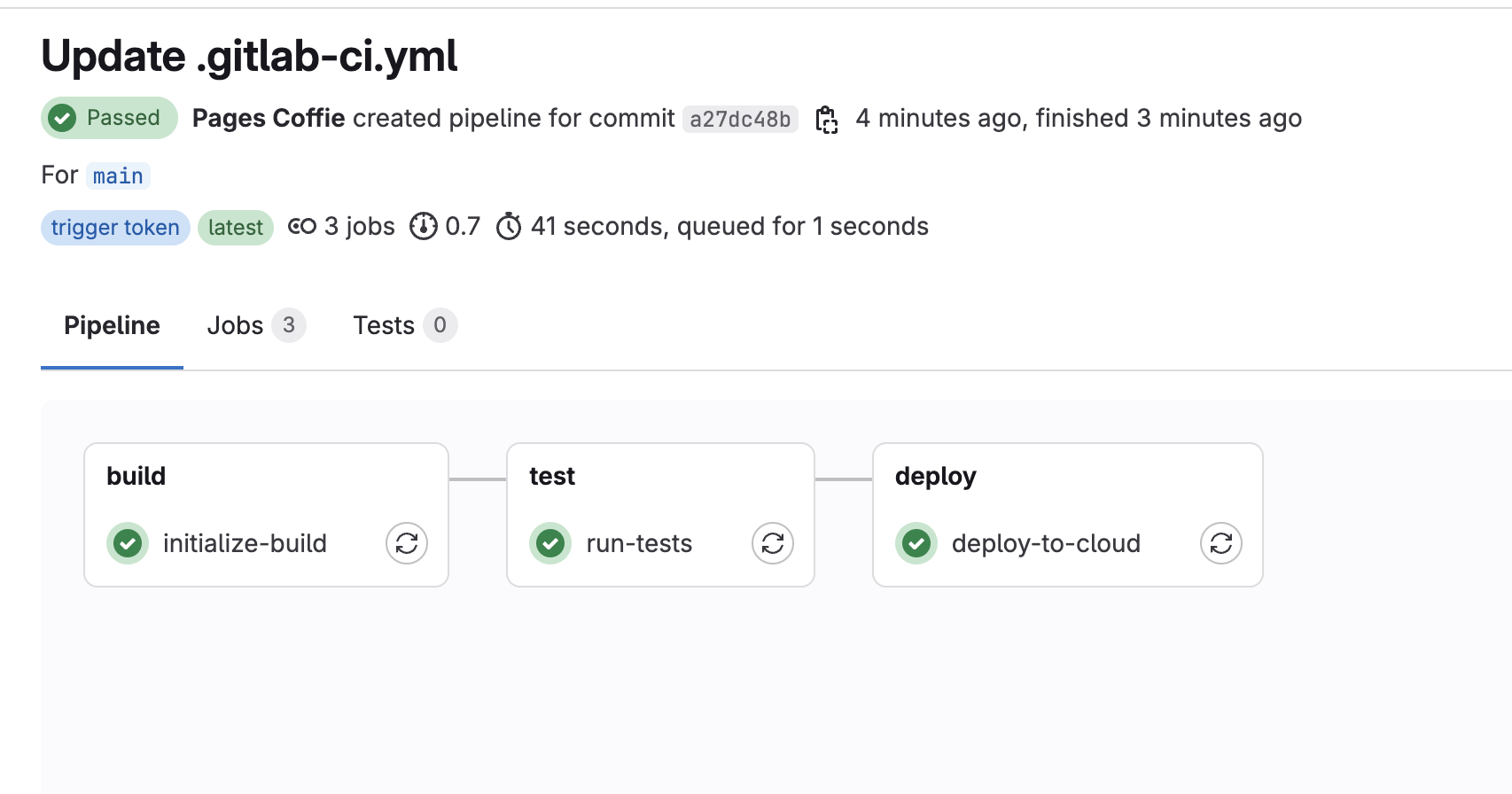

This pipeline contains the logic for service deployment. The pipeline consists of three stages: build, test and deploy

GitLab pipeline
stages:
  - build
  - test
  - deploy

image: alpine:latest

variables:
  PORT_CLIENT_ID: ${PORT_CLIENT_ID}
  PORT_CLIENT_SECRET: ${PORT_CLIENT_SECRET}
  PORT_API_URL: "${PORT_API_URL}"
  SERVICENOW_INSTANCE_URL: ${SERVICENOW_INSTANCE_URL}
  SERVICENOW_API_TOKEN: ${SERVICENOW_API_TOKEN} # Base64 encoded version of SNOW username:password
  APPROVAL_STATUS: "pending" # Default status for all pipelines


initialize-build:
  stage: build
  except:
    - pushes
  before_script:
    - apk update
    - apk add --upgrade curl jq -q
  script:
    - |
      echo "Initiating build checks"
      echo "Getting access token from Port API"
      accessToken=$(curl -X POST \
        -H 'Content-Type: application/json' \
        -d '{"clientId": "'"$PORT_CLIENT_ID"'", "clientSecret": "'"$PORT_CLIENT_SECRET"'"}' \
        -s '${PORT_API_URL}/auth/access_token' | jq -r '.accessToken')

      echo "ACCESS_TOKEN=$accessToken" >> data.env
      runId=$(cat $TRIGGER_PAYLOAD | jq -r '.port_context.runId')
      deployActionRunId=$(cat $TRIGGER_PAYLOAD | jq -r '.deploy_run_id')
      APPROVAL_STATUS=$(cat "$TRIGGER_PAYLOAD" | jq -r '.approval_status // "pending"')


      echo "DEPLOY_ACTION_RUN_ID=$deployActionRunId" >> data.env
      echo "TRIGGER_ACTION_RUN_ID=$runId" >> data.env
      echo "APPROVAL_STATUS=$APPROVAL_STATUS" >> data.env


      # Check APPROVAL STATUS
      if [ "$APPROVAL_STATUS" = "approved" ]; then
        echo "Deployment approved by platform engineer. Skipping initial logs and proceeding directly."
        # Log the approval message to Port action run logs
        curl -X POST \
          -H 'Content-Type: application/json' \
          -H "Authorization: Bearer $accessToken" \
          -d '{"message":"✅ Deployment approved by platform engineer, proceeding with deployment"}' \
          "${PORT_API_URL}/actions/runs/$deployActionRunId/logs"

      elif [ "$APPROVAL_STATUS" = "declined" ]; then
          echo "Deployment declined by platform engineer. Notifying developer."
          # Send the decline notification to Port logs for developer
          curl -X POST \
            -H 'Content-Type: application/json' \
            -H "Authorization: Bearer $accessToken" \
            -d '{"terminationStatus":"FAILURE", "message":"❌ Deployment declined by platform engineer. Please review the change request and take necessary actions."}' \
            "${PORT_API_URL}/actions/runs/$deployActionRunId/logs"

          # Send the decline notification to Port logs
          curl -X POST \
            -H 'Content-Type: application/json' \
            -H "Authorization: Bearer $accessToken" \
            -d '{"terminationStatus":"SUCCESS", "message":"❌ Declined deployment"}' \
            "${PORT_API_URL}/actions/runs/$runId/logs"
          exit 1  # Exit pipeline due to declined approval
      else
        curl -X POST \
          -H 'Content-Type: application/json' \
          -H "Authorization: Bearer $accessToken" \
          -d '{"message":"🚀 Initiating deployment sequence, preparing environment and resources"}' \
          "${PORT_API_URL}/actions/runs/$runId/logs"

        curl -X PATCH \
          -H 'Content-Type: application/json' \
          -H "Authorization: Bearer $accessToken" \
          -d '{"link":"'"$CI_PIPELINE_URL"'"}' \
          "${PORT_API_URL}/actions/runs/$runId"

        curl -X POST \
          -H 'Content-Type: application/json' \
          -H "Authorization: Bearer $accessToken" \
          -d '{"message":"🔄 Deployment preparation underway, validating resources and configurations"}' \
          "${PORT_API_URL}/actions/runs/$deployActionRunId/logs"

        # HERE IS WHERE YOU CAN ADD YOU BUILD SCRIPTS
      fi
  artifacts:
    reports:
      dotenv: data.env

run-tests:
  stage: test
  dependencies:
    - initialize-build  # Ensure the data.env artifact is downloaded
  except:
    - pushes
  before_script:
    - apk update
    - apk add --upgrade curl jq -q
  script:
    - |

      # Check if TRIGGER_PAYLOAD is set and the file exists
      if [ -z "$TRIGGER_PAYLOAD" ] || [ ! -f "$TRIGGER_PAYLOAD" ]; then
        echo "Error: TRIGGER_PAYLOAD is not set or the file does not exist."
        exit 1
      fi

      # Check if we need to skip tests and threshold checks
      APPROVAL_STATUS=$(cat "$TRIGGER_PAYLOAD" | jq -r '.approval_status // "pending"')

      if [ "$APPROVAL_STATUS" = "approved" ]; then
        echo "Skipping tests and threshold checks...";
        echo "COVERAGE_MET=true" >> data.env
        exit 0;
      fi

      echo "🧪 Running tests and checking thresholds..."
      # Simulate threshold check (e.g., code coverage)
      COVERAGE=65

      if [ "$COVERAGE" -lt 70 ]; then
        echo "⚠️ Coverage is below the 70% threshold, initiating ServiceNow change request..."

        # Extract the service entity from the trigger payload
        serviceEntity=$(cat "$TRIGGER_PAYLOAD" | jq -r '.entity')
        echo "COVERAGE_MET=false" >> data.env

        echo "Creating a change request in ServiceNow"
        changeRequestResponse=$(curl -X POST \
          -H "Authorization: Basic $SERVICENOW_API_TOKEN" \
          -H 'Content-Type: application/json' \
          -d "{\"short_description\": \"Automated change request from GitLab CI/CD\", \"business_service\": \"$serviceEntity\", \"priority\": \"1\", \"u_external_tag\": \"$DEPLOY_ACTION_RUN_ID\"}" \
          -s "$SERVICENOW_INSTANCE_URL/api/now/table/change_request")

        # Check if the request was successful and extract important details
        if [[ $(echo "$changeRequestResponse" | jq -r '.result.number') != "null" ]]; then
          changeNumber=$(echo "$changeRequestResponse" | jq -r '.result.number')
          changeSysId=$(echo "$changeRequestResponse" | jq -r '.result.sys_id')
          changeState=$(echo "$changeRequestResponse" | jq -r '.result.state')
          changeCreatedOn=$(echo "$changeRequestResponse" | jq -r '.result.sys_created_on')
          changeCreatedBy=$(echo "$changeRequestResponse" | jq -r '.result.sys_created_by')
          changeCategory=$(echo "$changeRequestResponse" | jq -r '.result.category')
          changePriority=$(echo "$changeRequestResponse" | jq -r '.result.priority')
          changeDescription=$(echo "$changeRequestResponse" | jq -r '.result.short_description')
          changeApproval=$(echo "$changeRequestResponse" | jq -r '.result.approval')
          changeTags=$(echo "$changeRequestResponse" | jq -r '.result.external_tags')
          changeService=$(echo "$changeRequestResponse" | jq -r '.result.business_service.value')

          echo "Change Request Created Successfully: Number: $changeNumber, Sys ID: $changeSysId, State: $changeState"
          logMessage="⚠️ Pipeline did not meet the deployment checks, so a ServiceNow Change Request with Number $changeNumber and system ID $changeSysId has been created. An admin will need to review and approve this request before the deployment can proceed."

          runId=$(cat $TRIGGER_PAYLOAD | jq -r '.port_context.runId')

          # Send the details to Port action run logs
          curl -X POST \
            -H 'Content-Type: application/json' \
            -H "Authorization: Bearer $ACCESS_TOKEN" \
            -d "{\"message\":\"$logMessage\"}" \
            "${PORT_API_URL}/actions/runs/$DEPLOY_ACTION_RUN_ID/logs"

          curl -X POST \
            -H 'Content-Type: application/json' \
            -H "Authorization: Bearer $ACCESS_TOKEN" \
            -d "{\"terminationStatus\":\"SUCCESS\", \"message\":\"$logMessage\"}" \
            "${PORT_API_URL}/actions/runs/$runId/logs"

          # Create the change request in Port
          portPayload="{
            \"identifier\": \"$changeSysId\",
            \"title\": \"$changeDescription\",
            \"icon\": \"Servicenow\",
            \"properties\": {
              \"number\": \"$changeNumber\",
              \"createdBy\": \"$changeCreatedBy\",
              \"createdOn\": \"$changeCreatedOn\",
              \"state\": \"$changeState\",
              \"category\": \"$changeCategory\",
              \"priority\": \"$changePriority\",
              \"description\": \"$changeDescription\",
              \"approval\": \"$changeApproval\",
              \"externalTags\": \"$changeTags\",
              \"service\": \"$changeService\"
            },
            \"relations\": {}
          }"

          # Send the change request data to Port API
          curl -X POST \
            -H 'Content-Type: application/json' \
            -H "Authorization: Bearer $ACCESS_TOKEN" \
            -d "$portPayload" \
            "${PORT_API_URL}/blueprints/servicenowChangeRequest/entities"

        else
          echo "Failed to create ServiceNow Change Request: $changeRequestResponse"

          # Send failure message to Port action run logs
          curl -X POST \
            -H 'Content-Type: application/json' \
            -H "Authorization: Bearer $ACCESS_TOKEN" \
            -d '{"message":"❌ Failed to create ServiceNow Change Request with response: '"$changeRequestResponse"'"}' \
            "${PORT_API_URL}/actions/runs/$DEPLOY_ACTION_RUN_ID/logs"

          exit 1  # Exit with failure
        fi
      else
        echo "✅ Coverage is sufficient (≥ 70%), no need to create a ServiceNow change request."
        echo "COVERAGE_MET=true" >> data.env
      fi
  artifacts:
    reports:
      dotenv: data.env

# Deployment job
deploy-to-cloud:
  stage: deploy
  dependencies:
    - run-tests
    - initialize-build
  except:
    - pushes
  before_script:
    - apk update
    - apk add --upgrade curl jq -q
  script:
    - |
      # Check if APPROVAL_STATUS or COVERAGE_MET is true
      if [ "$APPROVAL_STATUS" = "approved" ] || [ "$COVERAGE_MET" = "true" ]; then
        echo "Conditions met, deploying service to the cluster..."
        # HERE IS WHERE YOU CAN ADD YOUR DEPLOYMENT SCRIPT

        # Update port run status and logs
        runId=$(cat $TRIGGER_PAYLOAD | jq -r '.port_context.runId')
        curl -X POST \
          -H 'Content-Type: application/json' \
          -H "Authorization: Bearer $ACCESS_TOKEN" \
          -d '{"terminationStatus":"SUCCESS", "message":"✅ Service has been successfully deployed to the cluster"}' \
          "${PORT_API_URL}/actions/runs/$runId/logs"

        # Update developer that deployment was successful
        curl -X POST \
          -H 'Content-Type: application/json' \
          -H "Authorization: Bearer $ACCESS_TOKEN" \
          -d '{"terminationStatus":"SUCCESS", "message":"✅ Service has been successfully deployed to the cluster"}' \
          "${PORT_API_URL}/actions/runs/$DEPLOY_ACTION_RUN_ID/logs"
      else
        echo "Conditions not met, skipping deployment"
        exit 0
      fi

Conclusion​

Once all of the above components are created, you will have a the necessary setup to run the workflow described in the scenario overview.

You can use this chaining mechanism to create complex workflows for many use-cases, that involve multiple actions and automations, enabling you to streamline your DevOps processes.

Let's test it!​

  1. Head to the Self Service hub

  2. Click on the Deploy Service to Cluster action

  3. Choose the service you want to deploy and select your environment

  4. A GitLab pipeline will be triggered but will fail on the test stage due to not meeting coverage threshold

  5. The developer can see the logs on the runs page

  6. The platform engineer can see the servicenowChangeRequest entity displayed in Port

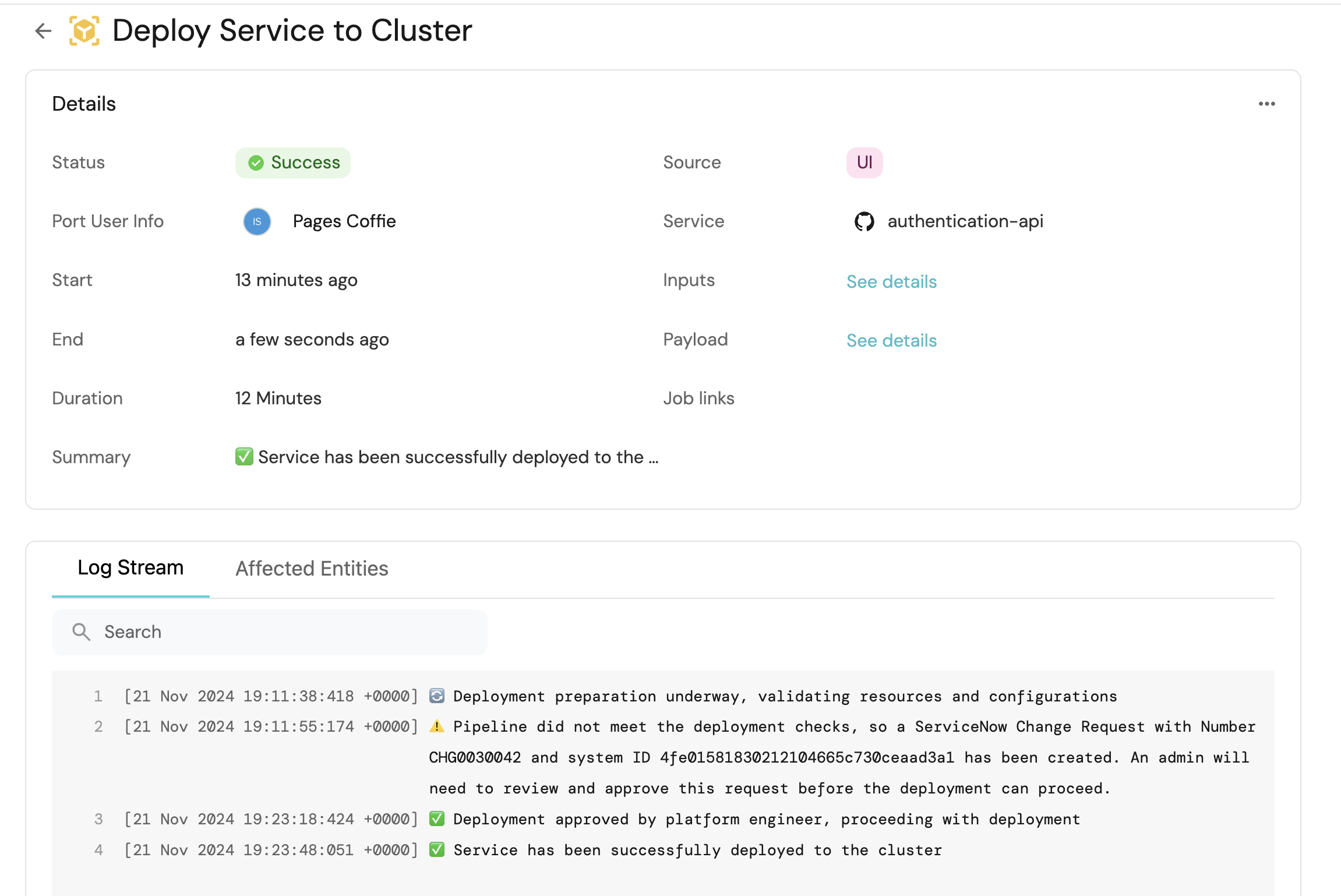

  7. Once the change request is either approved or declined, the GitLab pipeline will be re-triggered and the log stream will be shared with the developer

  8. The GitLab pipeline will be retriggered and Port context variable will be passed to instruct the pipeline script to deploy the service
