Create cloud resources using IaC

This guide shows how to open a pull request in your Git repository—directly from Port—to create a new cloud resource using GitOps.

Prerequisites​

  • A Port account with permissions to create self-service actions.
  • The Git Integration that is relevant for you needs to be installed.
  • A repository in your Git provider in which you can create a workflow/pipeline. We recommend naming it Port-actions.

Common use cases​

  • Platform engineers can define the logic of creating a cloud resource, including standard enforcement, security and permission boundaries.
  • Developers can easily create and track cloud resources directly from Port.

Set up data model​

To enable tracking of cloud resource definitions in Port, we'll add a new URL property to the existing Repository blueprint. This property will point to the location of IaC templates in your Git repository, letting us seamlessly link infrastructure code to each repository.

Add a resource definitions property​

In this guide we will add a new property to our Repository blueprint, which we can use to access our cloud resource definitions.

  1. Go to your Data model page.

  2. Expand your Repository blueprint, then click on + New property.

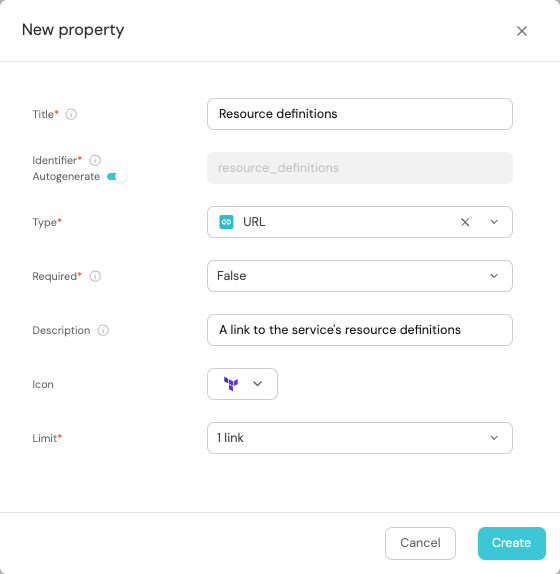

  3. Choose URL as the type, fill it like this and click Save:

This property is empty for now in all repositories, we will fill it as part of the action we're about to create 😎

Set up the action's frontend​

  1. Head to the Self-service page of your portal.

  2. Click on the + Action button in the top-right corner :

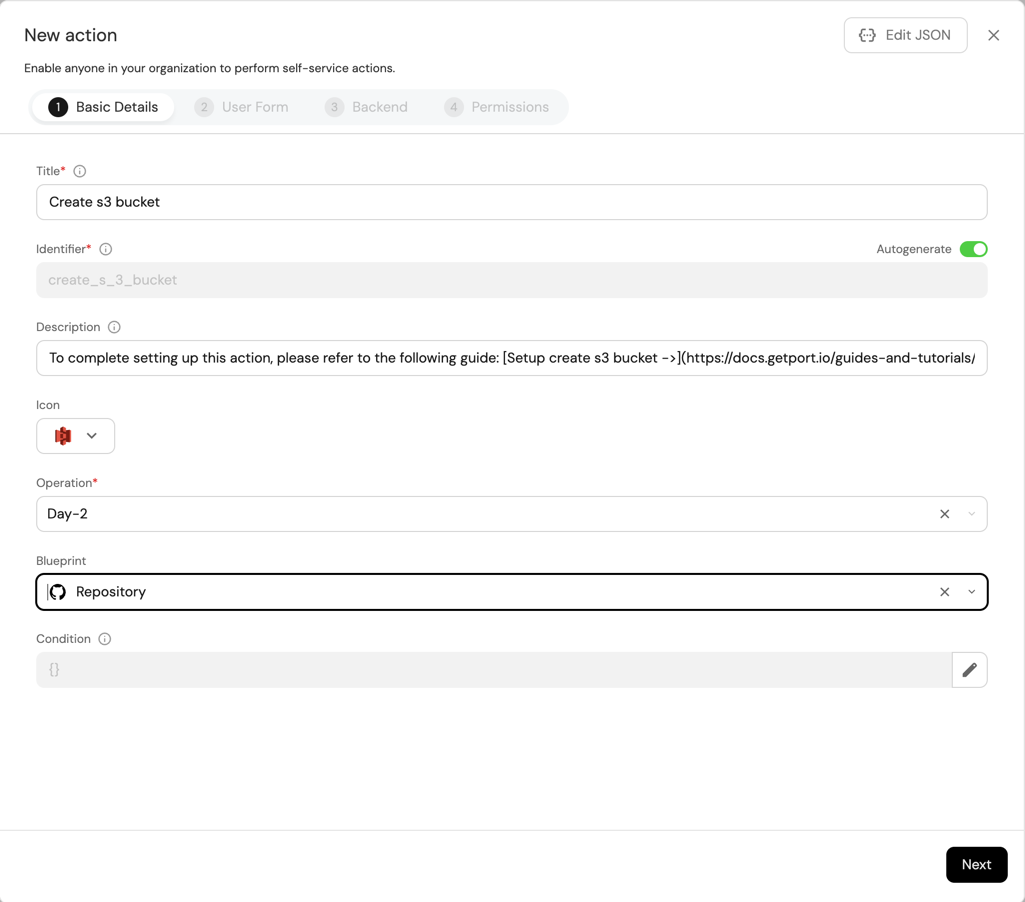

  3. Fill the basic form with the following:

    • Title: Enter Create s3 bucket

    • Identifier Toggle the switch icon off and type a create_s3_bucket

    • Description: Enter the description (e.g., Create an s3 bucket)

    • Icon: Type s3 and choose the Icon (optional)

    • Operation: Choose Day-2 from the dropdown

    • Blueprint: Choose Repository from the dropdown


  4. Click on Next, and add the following inputs: Name and Visibility.

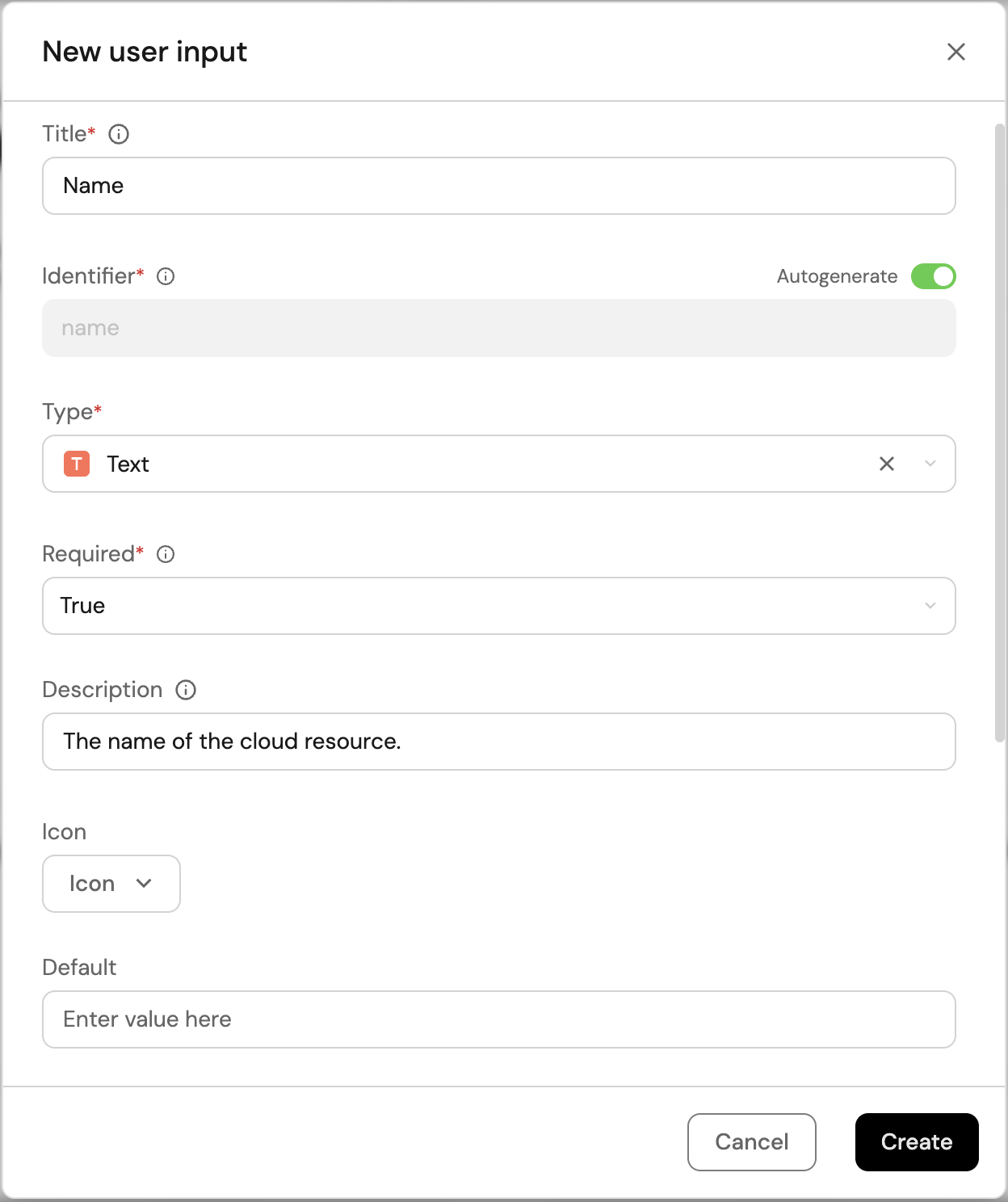

    To create the Name input field:

    • Click on + Input.

    • Enter the Title Name.

    • Select the Type Text.

    • Add the Description (optional).

    • Set Required to True.

    • Click on the Create button.

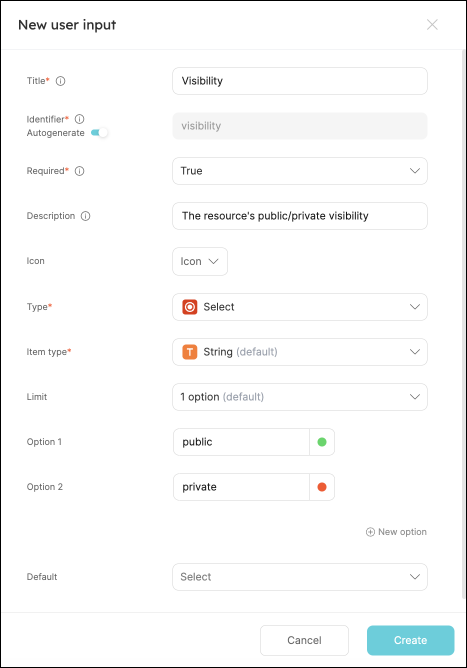

    To create the Visibility input field:

    • Click on + Input.

    • Enter the Title Visibility.

    • Choose the Type Select.

    • Set Required to True.

    • Configure Additional Information:

      • Item Type: String.
      • Limit: 1 option.
      • Add Options:
        • Option 1: public (choose a color).
        • Option 2: private (choose a color).

    • Click on the Create button.



  5. Click on Next to configure the Backend.

Now we'll define the backend of the action. Port supports multiple invocation types, depending on the Git provider you are using.

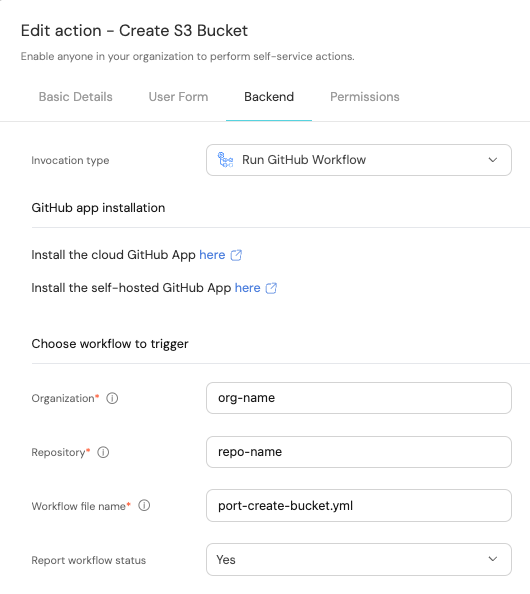

Fill out the form with your values:

  • Replace the Organization and Repository values with your values (this is where the workflow will reside and run).

  • Name the workflow port-create-bucket.yml.

  • Fill out your workflow details:


  • Scroll down to the Configure the invocation payload section.
    This is where you can define which data will be sent to your backend each time the action is executed.

    For this example, we will send some details that our backend needs to know - the inputs, along with the entity and the id of the action run.
    Copy the following JSON snippet and paste it in the payload code box:

    {
      "port_context": {
        "entity": "{{ .entity.identifier }}",
        "runId": "{{ .run.id }}"
      },
      "name": "{{ .inputs.name }}",
      "visibility": "{{ .inputs.visibility }}"
    }

The last step is customizing the action's permissions. For simplicity's sake, we will use the default settings. For more information, see the permissions page. Click Create.

The action's frontend is now ready 🥳

Set up the action's backend​

Now we want to write the logic that our action will trigger.

  1. First, let's create the necessary token and secrets. If you've already completed the scaffold a new service guide, you should already have these configured and you can skip this step.

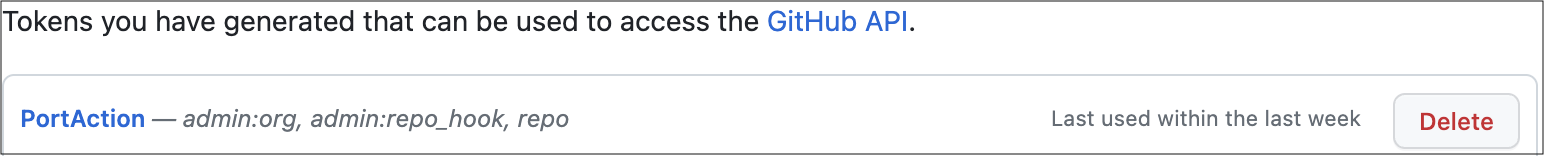

    • Go to your Github tokens page, create a personal access token with repo and admin:org scope, and copy it (this token is needed to create a pull-request from our workflow).

    • Go to your Port application, click on the ... in the top right corner, then click Credentials. Copy your Client ID and Client secret.

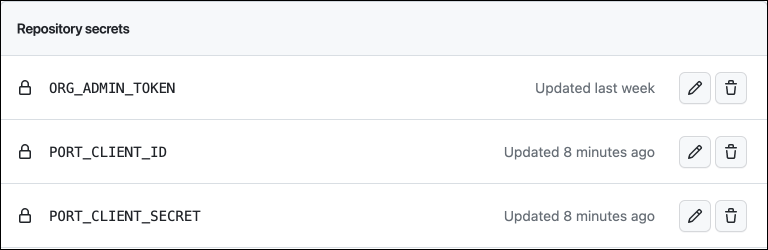

  2. In the repository where your workflow will reside, create 3 new secrets under Settings->Secrets and variables->Actions:

    • ORG_ADMIN_TOKEN - the personal access token you created in the previous step.

    • PORT_CLIENT_ID - the client ID you copied from your Port app.

    • PORT_CLIENT_SECRET - the client secret you copied from your Port app.



  3. Now let's create the workflow file that contains our logic. Our workflow will consist of 3 steps:

    • Creating a copy of the template file in the selected service's repository and replacing its variables with the data from the action's input.
    • Creating a pull request in the selected service's repository to add the new resource.
    • Reporting & logging the action result back to Port, and updating the relevant service's Resource definitions property with the URL of the service's resources directory.

  4. Under .github/workflows/, create a new file named port-create-bucket.yml and use the following snippet as its content:

    Github workflow (click to expand)
    name: Create cloud resource
    on:
      workflow_dispatch:
        inputs:
          port_context:
            required: true
            description: Includes the entity identifier, and the action's run id
          name:
            required: true
            description: The name of the new resource
            type: string
          visibility:
            required: true
            description: The visibility of the new resource
            type: string
    jobs:
      createResource:
        runs-on: ubuntu-latest
        steps:
          # Checkout the workflow's repository
          - uses: actions/checkout@v4
          # Checkout the service's repository
          - uses: actions/checkout@v4
            with:
              repository: "${{ fromJson(inputs.port_context).entity }}"
              path: ./targetRepo
              token: ${{ secrets.ORG_ADMIN_TOKEN }}
          - name: Copy template file
            run: |
              mkdir -p ./targetRepo/resources
              cp templates/cloudResource.tf ./targetRepo/resources/${{ inputs.name }}.tf
          - name: Update new file data
            run: |
              sed -i 's/{{ bucket_name }}/${{ inputs.name }}/' ./targetRepo/resources/${{ inputs.name }}.tf
              sed -i 's/{{ bucket_acl }}/${{ inputs.visibility }}/' ./targetRepo/resources/${{ inputs.name }}.tf
          - name: Open a pull request
            uses: peter-evans/create-pull-request@v5
            with:
              token: ${{ secrets.ORG_ADMIN_TOKEN }}
              path: ./targetRepo
              commit-message: Create new resource - ${{ inputs.name }}
              committer: GitHub <noreply@github.com>
              author: ${{ github.actor }} <${{ github.actor }}@users.noreply.github.com>
              signoff: false
              branch: new-resource-${{ inputs.name }}
              delete-branch: true
              title: Create new resource - ${{ inputs.name }}
              body: |
                Create new ${{ inputs.visibility }} resource - ${{ inputs.name }}
              draft: false
      create-entity-in-port-and-update-run:
        runs-on: ubuntu-latest
        needs: createResource
        steps:
          - name: UPSERT Entity
            uses: port-labs/port-github-action@v1
            with:
              identifier: ${{ fromJson(inputs.port_context).entity }}
              blueprint: githubRepository
              properties: |-
                {
                  "resource_definitions": "${{ github.server_url }}/${{ fromJson(inputs.port_context).entity }}/blob/main/resources/"
                }
              clientId: ${{ secrets.PORT_CLIENT_ID }}
              clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
              baseUrl: https://api.getport.io
              operation: UPSERT
              runId: ${{ fromJson(inputs.port_context).runId }}
          - name: Create a log message
            uses: port-labs/port-github-action@v1
            with:
              clientId: ${{ secrets.PORT_CLIENT_ID }}
              clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
              baseUrl: https://api.getport.io
              operation: PATCH_RUN
              runId: ${{ fromJson(inputs.port_context).runId }}
              logMessage: Pull request created successfully for "${{ inputs.name }}" 🚀
Selecting a Port API URL by account region

The port_region, port.baseUrl, portBaseUrl, port_base_url and OCEAN__PORT__BASE_URL parameters are used to select which instance of Port API will be used.

Port exposes two API instances, one for the EU region of Port, and one for the US region of Port.


We will now create a simple .tf file that will serve as a template for our new resource:

  • In your source repository (port-actions for example), create a file named cloudResource.tf under /templates/ (it's path should be /templates/cloudResource.tf).
  • Copy the following snippet and paste it in the file's contents:
cloudResource.tf (click to expand)
cloudResource.tf
resource "aws_s3_bucket" "example" {
provider = aws.bucket_region
name = "{{ bucket_name }}"
acl = "{{ bucket_acl }}"
}

All done! The action is ready to be executed 🚀


Execute the action​

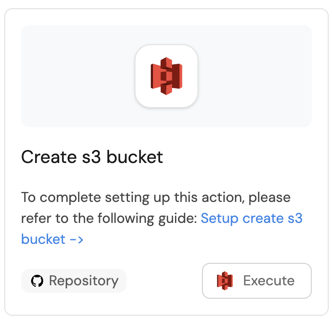

After creating an action, it will appear under the Self-service tab of your Port application:

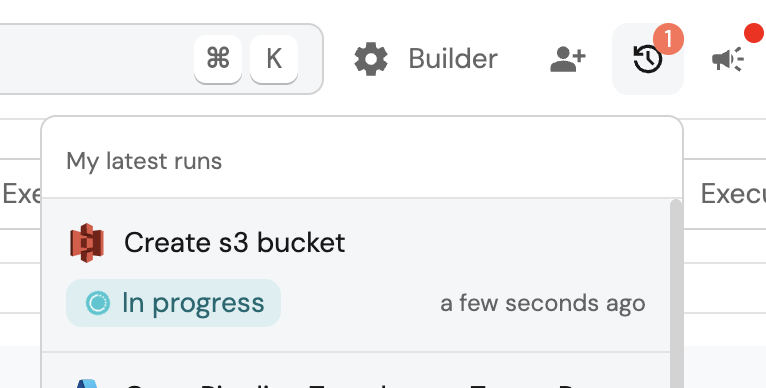

  1. Click Execute. On the top right corner of the page, click on the action button to view the action progress:

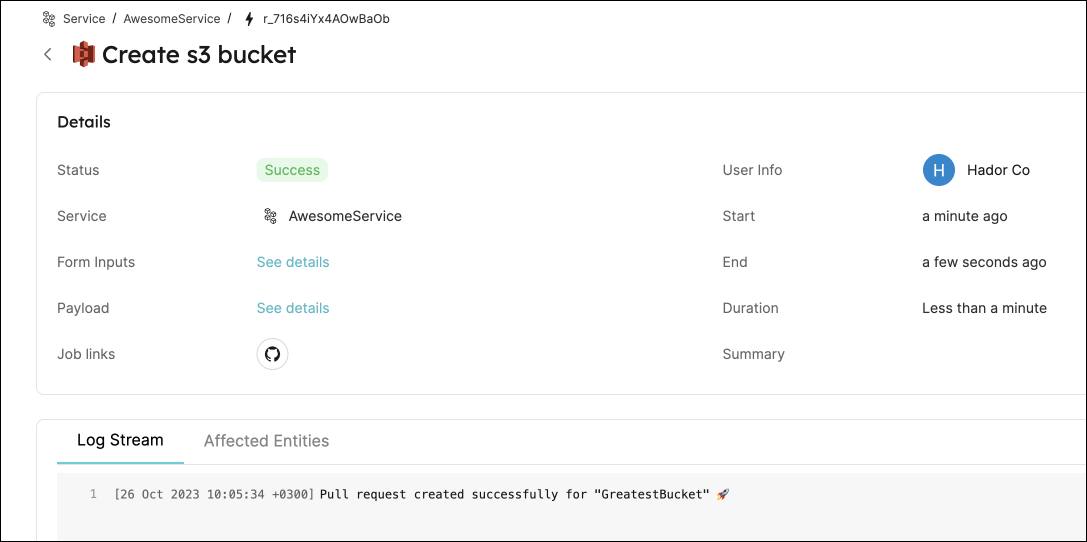

  2. This page provides details about the action run. We can see that the backend returned Success and the pull-request was created successfully:

Access the bucket's definition from Port​

You may have noticed that even though we updated the service's Resource definitions URL, it still leads to a non-existent page. This is because we do not have any resources in the repository yet, let's take care of that:

  1. Merge the pull-request.

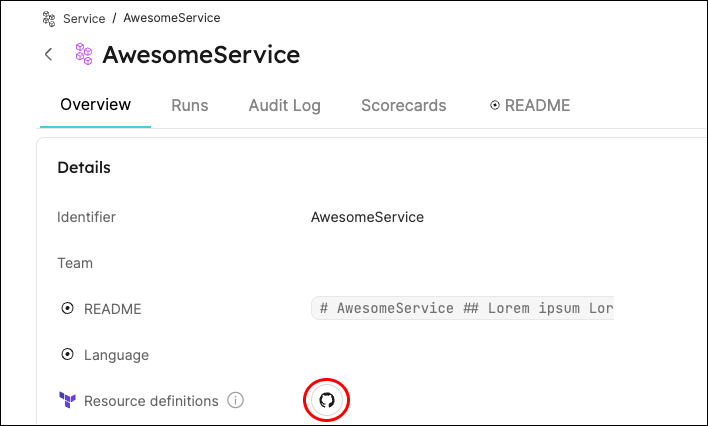

  2. Go to the entity page of the service that you executed the action for:


  3. Click on the Resource definitions link to access the service's resources.

All done! You can now create resources for your services directly from Port 💪🏽

Possible daily routine integrations​

  • Send a slack message to relevant people in the organization, notifying about the new resource.
  • Send a weekly/monthly report for managers/devops showing the new resources created in this timeframe and their owners.

Conclusion​

Developer portals need to support and integrate with git-ops practices seamlessly. Developers should be able to perform routine tasks independently, without having to create bottlenecks within the organization.
With Port, platform engineers can design precise and flexible self-service actions for their developers, while integrating with many different backends to suit your specific needs.
