Auto-heal unhealthy kubernetes pods

Kubernetes pods can become unhealthy due to various issues like resource constraints, configuration problems, or application failures. Manual intervention to diagnose and fix unhealthy pods creates operational overhead and delays in service recovery.

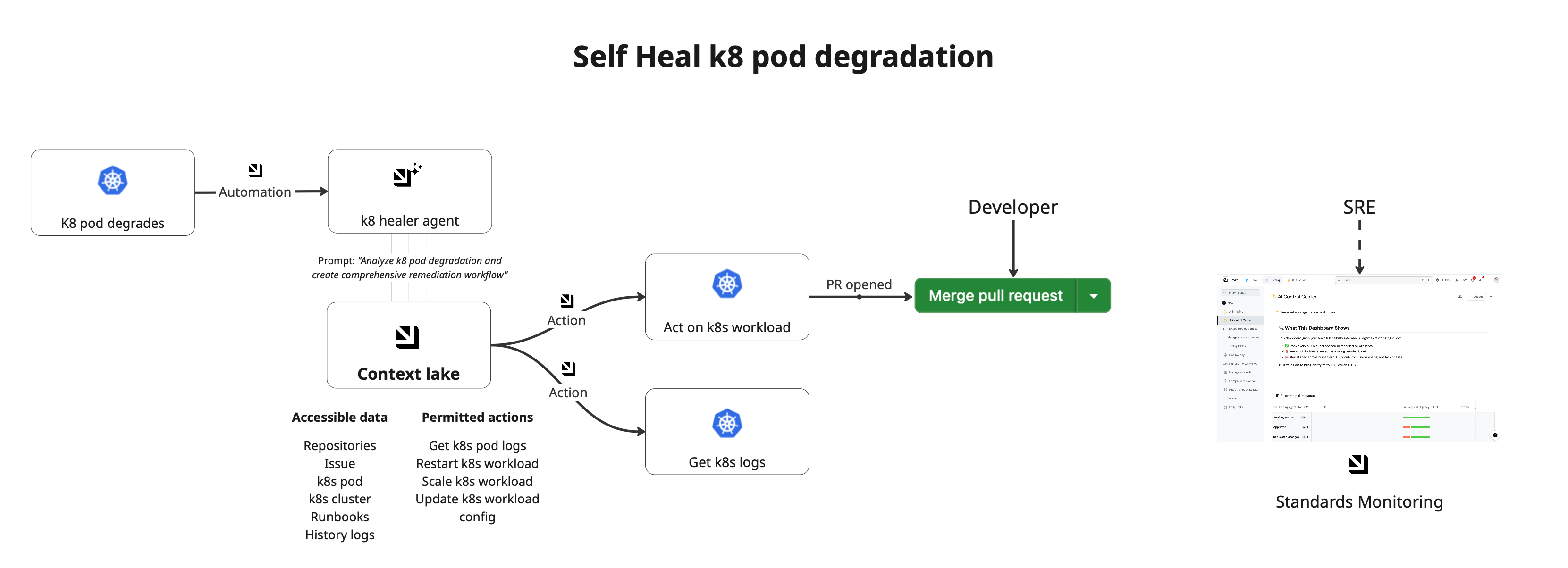

This guide demonstrates how to create an AI-powered system that automatically detects unhealthy pods, analyzes their logs and SDLC context, and triggers targeted remediation actions to restore service health.

The AI agent follows a guided process to first retrieve pod logs, combine them with SDLC context, intelligently determine the root cause, and execute targeted fixes like restarts, scaling, or configuration updates.

Common use cases

• Automatically restart pods that are in CrashLoopBackOff state due to application errors.
• Scale up resources when pods are failing due to memory limits or CPU constraints.
• Apply configuration fixes for common pod health issues like missing environment variables or incorrect resource requests.
• Trigger rollback procedures when pods fail after recent deployments.
• Notify teams about critical pod health issues requiring immediate attention.

Prerequisites

This guide assumes the following:

• You have a Port account and have completed the onboarding process.
• Port's Kubernetes integration is configured in your account.
• You have access to create and configure AI agents in Port.
• You have a Kubernetes cluster with pods that can be monitored and managed.

Set up self-service actions

We will create self-service actions that the AI agent can use for pod remediation.

Get kubernetes pod logs action

1. Go to the self-service page of your portal.

2. Click on + New Action.

3. Click on the {...} Edit JSON button.

4. Copy and paste the following JSON configuration:

   Get kubernetes pod logs action (Click to expand)

   {
     "identifier": "get_k8s_pod_logs",
     "title": "Get Kubernetes Pod Logs",
     "icon": "Cluster",
     "description": "Stream logs from a Kubernetes pod to help with debugging and monitoring",
     "trigger": {
       "type": "self-service",
       "operation": "DAY-2",
       "userInputs": {
         "properties": {
           "container": {
             "type": "string",
             "title": "Container Name (optional)",
             "description": "Specify container name if pod has multiple containers. Leave empty for default container."
           },
           "tail": {
             "type": "string",
             "title": "Number of Lines to Tail",
             "description": "Number of recent log lines to retrieve (default: 200)",
             "default": "200"
           },
           "follow": {
             "type": "boolean",
             "title": "Follow Logs",
             "description": "Stream logs in real-time (like tail -f)",
             "default": false
           },
           "since": {
             "type": "string",
             "title": "Since Time (optional)",
             "description": "Only return logs newer than a relative duration like 5s, 2m, or 3h"
           }
         },
         "required": []
       },
       "blueprintIdentifier": "k8s_pod"
     },
     "invocationMethod": {
       "type": "GITHUB",
       "org": "<YOUR-GITHUB-ORG>",
       "repo": "<YOUR-GITHUB-REPO>",
       "workflow": "get-pod-logs.yaml",
       "workflowInputs": {
         "port_context": {
           "entity": "{{ .entity }}",
           "runId": "{{ .run.id }}"
         },
         "inputs": "{{ .inputs }}"
       },
       "reportWorkflowStatus": true
     },
     "requiredApproval": false
   }

5. Click Save to create the action.

Restart kubernetes workload action

1. Go to the self-service page of your portal.

2. Click on + New Action.

3. Click on the {...} Edit JSON button.

4. Copy and paste the following JSON configuration:

   Restart kubernetes workload action (Click to expand)

   {
     "identifier": "restart_k8s_workload",
     "title": "Restart Kubernetes Workload",
     "icon": "Cluster",
     "description": "Restart a Kubernetes workload (Deployment, StatefulSet, or DaemonSet) to resolve transient issues",
     "trigger": {
       "type": "self-service",
       "operation": "DAY-2",
       "userInputs": {
         "properties": {
           "reason": {
             "type": "string",
             "title": "Reason for Restart",
             "description": "Brief explanation of why this workload needs to be restarted",
             "default": "Healing unhealthy workload"
           }
         },
         "required": []
       },
       "blueprintIdentifier": "k8s_workload"
     },
     "invocationMethod": {
       "type": "GITHUB",
       "org": "<YOUR-GITHUB-ORG>",
       "repo": "<YOUR-GITHUB-REPO>",
       "workflow": "restart-k8s-workload.yaml",
       "workflowInputs": {
         "port_context": {
           "entity": "{{ .entity }}",
           "runId": "{{ .run.id }}"
         }
       },
       "reportWorkflowStatus": true
     },
     "requiredApproval": false
   }

5. Click Save to create the action.

Scale up kubernetes workload action

1. Go to the self-service page of your portal.

2. Click on + New Action.

3. Click on the {...} Edit JSON button.

4. Copy and paste the following JSON configuration:

   Scale up kubernetes workload action (Click to expand)

   {
     "identifier": "scale_k8s_workload",
     "title": "Scale Kubernetes Workload",
     "icon": "Cluster",
     "description": "Scale a Kubernetes workload up or down to resolve resource issues",
     "trigger": {
       "type": "self-service",
       "operation": "DAY-2",
       "userInputs": {
         "properties": {
           "desired_replicas": {
             "type": "number",
             "title": "Desired Replicas",
             "description": "Number of replicas to scale to",
             "default": 3,
             "minimum": 1,
             "maximum": 20
           },
           "reason": {
             "type": "string",
             "title": "Reason for Scaling",
             "description": "Brief explanation of why this workload needs to be scaled",
             "default": "Scaling to resolve resource constraints"
           }
         },
         "required": [
           "desired_replicas"
         ]
       },
       "blueprintIdentifier": "k8s_workload"
     },
     "invocationMethod": {
       "type": "GITHUB",
       "org": "<YOUR-GITHUB-ORG>",
       "repo": "<YOUR-GITHUB-REPO>",
       "workflow": "scale-k8s-workload.yaml",
       "workflowInputs": {
         "desired_replicas": "{{ .inputs.\"desired_replicas\" }}",
         "port_context": {
           "entity": "{{ .entity }}",
           "runId": "{{ .run.id }}"
         }
       },
       "reportWorkflowStatus": true
     },
     "requiredApproval": false
   }

5. Click Save to create the action.

Update kubernetes config action

1. Go to the self-service page of your portal.

2. Click on + New Action.

3. Click on the {...} Edit JSON button.

4. Copy and paste the following JSON configuration:

   Update kubernetes config action (Click to expand)

   {
     "identifier": "update_k8s_workload_config",
     "title": "Update Kubernetes Workload Configuration",
     "icon": "Cluster",
     "description": "Update resource limits and requests for a Kubernetes workload",
     "trigger": {
       "type": "self-service",
       "operation": "DAY-2",
       "userInputs": {
         "properties": {
           "memory_limit": {
             "type": "string",
             "title": "Memory Limit",
             "description": "Memory limit (e.g., 512Mi, 1Gi)",
             "default": "512Mi",
             "pattern": "^[0-9]+(Mi|Gi)$"
           },
           "cpu_limit": {
             "type": "string",
             "title": "CPU Limit",
             "description": "CPU limit (e.g., 500m, 1)",
             "default": "500m",
             "pattern": "^[0-9]+(m|)$"
           },
           "memory_request": {
             "type": "string",
             "title": "Memory Request",
             "description": "Memory request (e.g., 256Mi, 512Mi)",
             "default": "256Mi",
             "pattern": "^[0-9]+(Mi|Gi)$"
           },
           "cpu_request": {
             "type": "string",
             "title": "CPU Request",
             "description": "CPU request (e.g., 250m, 500m)",
             "default": "250m",
             "pattern": "^[0-9]+(m|)$"
           },
           "reason": {
             "type": "string",
             "title": "Reason for Update",
             "description": "Brief explanation of why this configuration needs to be updated",
             "default": "Updating resource configuration to resolve health issues"
           }
         },
         "required": [
           "memory_limit",
           "cpu_limit",
           "memory_request",
           "cpu_request"
         ]
       },
       "blueprintIdentifier": "k8s_workload"
     },
     "invocationMethod": {
       "type": "GITHUB",
       "org": "<YOUR-GITHUB-ORG>",
       "repo": "<YOUR-GITHUB-REPO>",
       "workflow": "update-k8s-workload-config.yaml",
       "workflowInputs": {
         "port_context": {
           "entity": "{{ .entity }}",
           "runId": "{{ .run.id }}"
         }
       },
       "reportWorkflowStatus": true
     },
     "requiredApproval": false
   }

5. Click Save to create the action.

Set up GitHub workflows

We will create GitHub workflows to be triggered by the self-service actions.

Dedicated Workflows Repository

We recommend creating a dedicated repository for the workflows that are used by Port actions.

Add GitHub secrets

In your GitHub repository, go to Settings > Secrets and add the following secrets:

• PORT_CLIENT_ID - Your port client id How to get the credentials.
• PORT_CLIENT_SECRET - Your port client secret How to get the credentials.
• KUBECONFIG - Your kubeconfig file encoded in base64.

Get kubernets logs GitHub workflow

1. Create the file .github/workflows/get-k8s-pod-logs.yaml in the .github/workflows folder of your repository.

2. Copy and paste the following content:

   Get kubernetes logs GitHub workflow (Click to expand)

   name: Get Kubernetes Pod Logs

   on:
     workflow_dispatch:
       inputs:
         port_context:
           required: true
           type: string
           description: "Port context containing entity and runId"
         inputs:
           required: false
           type: string
           description: "User inputs for the action"

   jobs:
     pod-logs:
       runs-on: ubuntu-latest
       steps:
         - name: Checkout repository
           uses: actions/checkout@v4

         - name: Parse Port context
           id: parse-context
           run: |
             # Debug: Show the raw input
             echo "Raw port_context input:"
             echo '${{ inputs.port_context }}'
             echo ""

             # Parse with error handling
             RUN_ID=$(echo '${{ inputs.port_context }}' | jq -r '.runId // empty')
             ENTITY=$(echo '${{ inputs.port_context }}' | jq -r '.entity // empty')
             POD_IDENTIFIER=$(echo '${{ inputs.port_context }}' | jq -r '.entity.identifier // empty')
             POD_TITLE=$(echo '${{ inputs.port_context }}' | jq -r '.entity.title // empty')

             # Handle Pod Name - extract real pod name from Port identifier
             # Port identifier format: "pod-name-namespace-cluster" (e.g., "api-backend-7bd58f9457-dhblj-production-minikube-cluster")
             # Real pod name format: "pod-name" (e.g., "api-backend-7bd58f9457-dhblj")
             if [[ "$POD_IDENTIFIER" =~ ^(.+)-[^-]+-minikube-cluster$ ]]; then
               POD_NAME="${BASH_REMATCH[1]}"
               echo "🔍 Extracted real pod name from Port identifier: $POD_NAME"
             else
               POD_NAME="$POD_IDENTIFIER"
               echo "📍 Using identifier as pod name: $POD_NAME"
             fi

             # Handle namespace - get from Port entity properties
             NAMESPACE=$(echo '${{ inputs.port_context }}' | jq -r '.entity.properties.namespace // empty' 2>/dev/null)
             if [ -z "$NAMESPACE" ] || [ "$NAMESPACE" = "null" ]; then
               echo "⚠️ Namespace not found in entity properties, defaulting to production"
               NAMESPACE="production"
             fi
             echo "📍 Using namespace: $NAMESPACE"

             # Handle cluster - try multiple sources
             CLUSTER=$(echo '${{ inputs.port_context }}' | jq -r '.entity.properties.cluster // empty' 2>/dev/null)
             if [ -z "$CLUSTER" ] || [ "$CLUSTER" = "null" ]; then
               # Try to extract from pod name or use default
               CLUSTER="default-cluster"
               echo "⚠️  Cluster not found in entity properties, using default-cluster"
             fi

             # Validate required fields
             if [ -z "$RUN_ID" ] || [ -z "$POD_NAME" ]; then
               echo "❌ Error: Missing required fields in port_context"
               echo "RUN_ID: $RUN_ID"
               echo "POD_NAME: $POD_NAME"
               exit 1
             fi

             # Set outputs with proper escaping
             {
               echo "runId<<EOF"
               echo "$RUN_ID"
               echo "EOF"
             } >> $GITHUB_OUTPUT

             {
               echo "entity<<EOF"
               echo "$ENTITY"
               echo "EOF"
             } >> $GITHUB_OUTPUT

             {
               echo "podName<<EOF"
               echo "$POD_NAME"
               echo "EOF"
             } >> $GITHUB_OUTPUT

             {
               echo "podTitle<<EOF"
               echo "$POD_TITLE"
               echo "EOF"
             } >> $GITHUB_OUTPUT

             {
               echo "namespace<<EOF"
               echo "$NAMESPACE"
               echo "EOF"
             } >> $GITHUB_OUTPUT

             {
               echo "cluster<<EOF"
               echo "$CLUSTER"
               echo "EOF"
             } >> $GITHUB_OUTPUT

             # Debug: Show parsed values
             echo "Parsed values:"
             echo "RUN_ID: $RUN_ID"
             echo "POD_IDENTIFIER: $POD_IDENTIFIER"
             echo "POD_NAME: $POD_NAME"
             echo "POD_TITLE: $POD_TITLE"
             echo "NAMESPACE: $NAMESPACE"
             echo "CLUSTER: $CLUSTER"

         - name: Parse user inputs
           id: parse-inputs
           run: |
             # Debug: Show the raw inputs
             echo "Raw inputs:"
             echo '${{ inputs.inputs }}'
             echo ""

             if [ -n "${{ inputs.inputs }}" ] && [ "${{ inputs.inputs }}" != "null" ]; then
               # Parse with error handling
               CONTAINER=$(echo '${{ inputs.inputs }}' | jq -r '.container // empty' 2>/dev/null || echo "")
               TAIL=$(echo '${{ inputs.inputs }}' | jq -r '.tail // "200"' 2>/dev/null || echo "200")
               FOLLOW=$(echo '${{ inputs.inputs }}' | jq -r '.follow // false' 2>/dev/null || echo "false")
               SINCE=$(echo '${{ inputs.inputs }}' | jq -r '.since // empty' 2>/dev/null || echo "")

               {
                 echo "container<<EOF"
                 echo "$CONTAINER"
                 echo "EOF"
               } >> $GITHUB_OUTPUT

               {
                 echo "tail<<EOF"
                 echo "$TAIL"
                 echo "EOF"
               } >> $GITHUB_OUTPUT

               {
                 echo "follow<<EOF"
                 echo "$FOLLOW"
                 echo "EOF"
               } >> $GITHUB_OUTPUT

               {
                 echo "since<<EOF"
                 echo "$SINCE"
                 echo "EOF"
               } >> $GITHUB_OUTPUT
             else
               {
                 echo "container<<EOF"
                 echo ""
                 echo "EOF"
               } >> $GITHUB_OUTPUT

               {
                 echo "tail<<EOF"
                 echo "200"
                 echo "EOF"
               } >> $GITHUB_OUTPUT

               {
                 echo "follow<<EOF"
                 echo "false"
                 echo "EOF"
               } >> $GITHUB_OUTPUT

               {
                 echo "since<<EOF"
                 echo ""
                 echo "EOF"
               } >> $GITHUB_OUTPUT
             fi

             # Debug: Show parsed input values
             echo "Parsed input values:"
             echo "CONTAINER: $CONTAINER"
             echo "TAIL: $TAIL"
             echo "FOLLOW: $FOLLOW"
             echo "SINCE: $SINCE"

         - name: Inform Port of workflow start
           uses: port-labs/port-github-action@v1
           with:
             clientId: ${{ secrets.PORT_CLIENT_ID }}
             clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
             baseUrl: https://api.getport.io
             operation: PATCH_RUN
             runId: ${{ steps.parse-context.outputs.runId }}
             logMessage: "🚀 Starting pod logs retrieval for ${{ steps.parse-context.outputs.podTitle }} in namespace ${{ steps.parse-context.outputs.namespace }} on cluster ${{ steps.parse-context.outputs.cluster }}..."

         - name: Setup kubectl
           uses: azure/setup-kubectl@v3
           with:
             version: 'latest'

         - name: Configure kubeconfig
           run: |
             # Create .kube directory
             mkdir -p ~/.kube

             # Check if KUBECONFIG secret is provided
             if [ -n "${{ secrets.KUBECONFIG }}" ]; then
               echo "🔧 Using kubeconfig from GitHub secret..."
               echo "${{ secrets.KUBECONFIG }}" | base64 -d > ~/.kube/config
               chmod 600 ~/.kube/config
               echo "✅ Kubeconfig configured from secret"
             else
               echo "❌ No KUBECONFIG secret found!"
               echo "Please add your kubeconfig as a GitHub secret named 'KUBECONFIG'"
               echo "You can generate it by running: cat ~/.kube/config | base64 -w 0"
               exit 1
             fi

             # Display current context
             echo "📍 Current kubectl context:"
             kubectl config current-context || echo "No context set"

             # Show available contexts
             echo "📋 Available contexts:"
             kubectl config get-contexts || echo "No contexts available"

         - name: Verify kubectl access
           run: |
             echo "🔍 Verifying kubectl access..."
             echo "📍 Cluster info:"
             kubectl cluster-info --request-timeout=10s --insecure-skip-tls-verify || echo "⚠️  Could not get cluster info"
             echo ""
             echo "📋 Available pods in namespace ${{ steps.parse-context.outputs.namespace }}:"
             kubectl get pods -n ${{ steps.parse-context.outputs.namespace }} --no-headers --insecure-skip-tls-verify | head -5 || echo "❌ No pods found or access denied"
             echo "✅ kubectl access verified"

         - name: Check if pod exists
           id: check-pod
           run: |
             if kubectl get pod ${{ steps.parse-context.outputs.podName }} -n ${{ steps.parse-context.outputs.namespace }} --insecure-skip-tls-verify >/dev/null 2>&1; then
               echo "exists=true" >> $GITHUB_OUTPUT
               echo "✅ Pod ${{ steps.parse-context.outputs.podName }} found in namespace ${{ steps.parse-context.outputs.namespace }}"
             else
               echo "exists=false" >> $GITHUB_OUTPUT
               echo "❌ Pod ${{ steps.parse-context.outputs.podName }} not found in namespace ${{ steps.parse-context.outputs.namespace }}"
             fi

         - name: Get pod information
           if: steps.check-pod.outputs.exists == 'true'
           run: |
             echo "📋 Pod Information:"
             kubectl describe pod ${{ steps.parse-context.outputs.podName }} -n ${{ steps.parse-context.outputs.namespace }} --insecure-skip-tls-verify | head -20

         - name: Stream pod logs to Port
           if: steps.check-pod.outputs.exists == 'true'
           shell: bash
           run: |
             RUN_ID="${{ steps.parse-context.outputs.runId }}"
             POD_NAME="${{ steps.parse-context.outputs.podName }}"
             NAMESPACE="${{ steps.parse-context.outputs.namespace }}"
             CONTAINER="${{ steps.parse-inputs.outputs.container }}"
             TAIL="${{ steps.parse-inputs.outputs.tail }}"
             FOLLOW="${{ steps.parse-inputs.outputs.follow }}"
             SINCE="${{ steps.parse-inputs.outputs.since }}"

             # Build kubectl logs command
             KUBECTL_CMD="kubectl logs $POD_NAME -n $NAMESPACE --insecure-skip-tls-verify"

             if [ -n "$CONTAINER" ]; then
               KUBECTL_CMD="$KUBECTL_CMD -c $CONTAINER"
             fi

             if [ -n "$TAIL" ]; then
               KUBECTL_CMD="$KUBECTL_CMD --tail=$TAIL"
             fi

             if [ -n "$SINCE" ]; then
               KUBECTL_CMD="$KUBECTL_CMD --since=$SINCE"
             fi

             echo "🔍 Executing: $KUBECTL_CMD"

             # Execute kubectl logs and capture output
             set +e
             echo "📄 Retrieving logs..."
             LOG_OUTPUT=$($KUBECTL_CMD 2>&1)
             LOG_STATUS=$?
             set -e

             # Save logs to file for the summary
             if [ $LOG_STATUS -eq 0 ]; then
               echo "SUCCESS" > status.txt
               echo "✅ Logs retrieved successfully"
               # Save logs to file (truncate if too long)
               echo "$LOG_OUTPUT" | head -100 > pod_logs.txt
               echo "📊 Retrieved $(echo "$LOG_OUTPUT" | wc -l) lines of logs"
             else
               echo "FAILURE" > status.txt
               echo "❌ Failed to retrieve logs (exit code: $LOG_STATUS)"
               echo "Error: $LOG_OUTPUT" > pod_logs.txt
             fi

         - name: Handle pod not found
           if: steps.check-pod.outputs.exists == 'false'
           run: |
             echo "❌ Pod not found - cannot retrieve logs"
             echo "FAILURE" > status.txt
             echo "Pod not found in namespace ${{ steps.parse-context.outputs.namespace }}" > pod_logs.txt

         - name: Prepare summary with logs
           if: always()
           id: prepare-summary
           run: |
             if [ -f pod_logs.txt ]; then
               LOGS_CONTENT=$(cat pod_logs.txt)
               # Create summary with logs
               SUMMARY="## 📋 Pod Logs for ${{ steps.parse-context.outputs.podName }}

             **Namespace:** ${{ steps.parse-context.outputs.namespace }}
             **Status:** $(cat status.txt 2>/dev/null || echo 'UNKNOWN')

             ### 📄 Logs:
             \`\`\`
             $LOGS_CONTENT
             \`\`\`"
             else
               SUMMARY="Failed to retrieve logs for pod ${{ steps.parse-context.outputs.podName }}"
             fi

             # Save summary to output (escape for GitHub Actions)
             {
               echo "summary<<EOF"
               echo "$SUMMARY"
               echo "EOF"
             } >> $GITHUB_OUTPUT

         - name: Inform Port about result
           if: always()
           uses: port-labs/port-github-action@v1
           with:
             clientId: ${{ secrets.PORT_CLIENT_ID }}
             clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
             baseUrl: https://api.getport.io
             operation: PATCH_RUN
             runId: ${{ steps.parse-context.outputs.runId }}
             status: ${{ steps.check-pod.outputs.exists == 'true' && 'SUCCESS' || 'FAILURE' }}
             logMessage: ${{ steps.check-pod.outputs.exists == 'true' && '✅ Pod logs retrieval completed successfully!' || '❌ Pod logs retrieval failed - pod not found' }}
             summary: ${{ steps.prepare-summary.outputs.summary }}

Restart kubernetes workload GitHub workflow

1. Create the file .github/workflows/restart-k8s-workload.yaml in the .github/workflows folder of your repository.

2. Copy and paste the following content:

   Restart kubernetes workload GitHub workflow (Click to expand)

   name: Restart Kubernetes Workload

   on:
     workflow_dispatch:
       inputs:
         port_context:
           required: true
           description: 'Action and general context (blueprint, entity, run id, etc...)'
           type: string

   jobs:
     restart-workload:
       runs-on: ubuntu-latest
       steps:
         - uses: 'actions/checkout@v4'

         - name: Inform Port of workflow start
           uses: port-labs/port-github-action@v1
           with:
             clientId: ${{ secrets.PORT_CLIENT_ID }}
             clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
             baseUrl: https://api.getport.io
             operation: PATCH_RUN
             runId: ${{fromJson(inputs.port_context).runId}}
             logMessage: Starting restart of Kubernetes workload ${{ fromJson(inputs.port_context).entity.title }}

         - name: Configure kubectl
           run: |
             # NOTE: In production, this should connect to your production cluster with proper SSL verification
             # For this demo, we're using a local cluster through ngrok tunnel, so we skip TLS verification
             echo "🔧 Using kubeconfig from GitHub secret..."
             echo "${{ secrets.KUBECONFIG }}" | base64 -d > kubeconfig.yaml
             export KUBECONFIG=kubeconfig.yaml
             echo "✅ Kubeconfig configured from secret"
             echo "📍 Current kubectl context:"
             kubectl config current-context --insecure-skip-tls-verify
             echo "📋 Available contexts:"
             kubectl config get-contexts
             echo "🔍 Verifying kubectl access..."
             kubectl cluster-info --request-timeout=10s --insecure-skip-tls-verify
             echo "✅ kubectl access verified"

         - name: Restart Kubernetes workload
           run: |
             export KUBECONFIG=kubeconfig.yaml
             WORKLOAD_NAME="${{ fromJson(inputs.port_context).entity.title }}"
             NAMESPACE="${{ fromJson(inputs.port_context).entity.properties.namespace }}"
             WORKLOAD_TYPE="${{ fromJson(inputs.port_context).entity.properties.kind }}"

             echo "Restarting $WORKLOAD_TYPE: $WORKLOAD_NAME in namespace: $NAMESPACE"

             case $WORKLOAD_TYPE in
               "Deployment")
                 kubectl rollout restart deployment/$WORKLOAD_NAME -n $NAMESPACE --insecure-skip-tls-verify
                 kubectl rollout status deployment/$WORKLOAD_NAME -n $NAMESPACE --timeout=300s --insecure-skip-tls-verify
                 ;;
               "StatefulSet")
                 kubectl rollout restart statefulset/$WORKLOAD_NAME -n $NAMESPACE --insecure-skip-tls-verify
                 kubectl rollout status statefulset/$WORKLOAD_NAME -n $NAMESPACE --timeout=300s --insecure-skip-tls-verify
                 ;;
               "DaemonSet")
                 kubectl rollout restart daemonset/$WORKLOAD_NAME -n $NAMESPACE --insecure-skip-tls-verify
                 kubectl rollout status daemonset/$WORKLOAD_NAME -n $NAMESPACE --timeout=300s --insecure-skip-tls-verify
                 ;;
               *)
                 echo "Unsupported workload type: $WORKLOAD_TYPE"
                 exit 1
                 ;;
             esac

         - name: Verify workload health
           run: |
             export KUBECONFIG=kubeconfig.yaml
             WORKLOAD_NAME="${{ fromJson(inputs.port_context).entity.title }}"
             NAMESPACE="${{ fromJson(inputs.port_context).entity.properties.namespace }}"
             WORKLOAD_TYPE="${{ fromJson(inputs.port_context).entity.properties.kind }}"

             echo "Checking health of $WORKLOAD_TYPE: $WORKLOAD_NAME"
             kubectl get $WORKLOAD_TYPE $WORKLOAD_NAME -n $NAMESPACE --insecure-skip-tls-verify
             kubectl get pods -l app=$WORKLOAD_NAME -n $NAMESPACE --insecure-skip-tls-verify

         - name: Inform Port about restart success
           if: success()
           uses: port-labs/port-github-action@v1
           with:
             clientId: ${{ secrets.PORT_CLIENT_ID }}
             clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
             baseUrl: https://api.getport.io
             operation: PATCH_RUN
             runId: ${{ fromJson(inputs.port_context).runId }}
             status: 'SUCCESS'
             logMessage: ✅ Successfully restarted Kubernetes workload ${{ fromJson(inputs.port_context).entity.title }}
             summary: Kubernetes workload restart completed successfully

         - name: Inform Port about restart failure
           if: failure()
           uses: port-labs/port-github-action@v1
           with:
             clientId: ${{ secrets.PORT_CLIENT_ID }}
             clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
             baseUrl: https://api.getport.io
             operation: PATCH_RUN
             runId: ${{ fromJson(inputs.port_context).runId }}
             status: 'FAILURE'
             logMessage: ❌ Failed to restart Kubernetes workload ${{ fromJson(inputs.port_context).entity.title }}
             summary: Kubernetes workload restart failed

Scale up kubernetes workload GitHub workflow

1. Create the file .github/workflows/scale-k8s-workload.yaml in the .github/workflows folder of your repository.

2. Copy and paste the following content:

   Scale up kubernetes workload GitHub workflow (Click to expand)

   name: Scale Kubernetes Workload

   on:
     workflow_dispatch:
       inputs:
         desired_replicas:
           required: true
           description: 'Number of replicas to scale to'
           type: string
         port_context:
           required: true
           description: 'Action and general context (blueprint, entity, run id, etc...)'
           type: string

   jobs:
     scale-workload:
       runs-on: ubuntu-latest
       steps:
         - uses: 'actions/checkout@v4'

         - name: Inform Port of workflow start
           uses: port-labs/port-github-action@v1
           with:
             clientId: ${{ secrets.PORT_CLIENT_ID }}
             clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
             baseUrl: https://api.getport.io
             operation: PATCH_RUN
             runId: ${{fromJson(inputs.port_context).runId}}
             logMessage: Starting scale operation for Kubernetes workload ${{ fromJson(inputs.port_context).entity.title }}

         - name: Configure kubectl
           run: |
             # NOTE: In production, this should connect to your production cluster with proper SSL verification
             # For this demo, we're using a local cluster through ngrok tunnel, so we skip TLS verification
             echo "🔧 Using kubeconfig from GitHub secret..."
             echo "${{ secrets.KUBECONFIG }}" | base64 -d > kubeconfig.yaml
             export KUBECONFIG=kubeconfig.yaml
             echo "✅ Kubeconfig configured from secret"
             echo "📍 Current kubectl context:"
             kubectl config current-context --insecure-skip-tls-verify
             echo "📋 Available contexts:"
             kubectl config get-contexts
             echo "🔍 Verifying kubectl access..."
             kubectl cluster-info --request-timeout=10s --insecure-skip-tls-verify
             echo "✅ kubectl access verified"

         - name: Scale Kubernetes workload
           run: |
             export KUBECONFIG=kubeconfig.yaml
             WORKLOAD_NAME="${{ fromJson(inputs.port_context).entity.title }}"
             NAMESPACE="${{ fromJson(inputs.port_context).entity.properties.namespace }}"
             WORKLOAD_TYPE="${{ fromJson(inputs.port_context).entity.properties.kind }}"
             REPLICAS="${{ inputs.desired_replicas }}"

             echo "Scaling $WORKLOAD_TYPE: $WORKLOAD_NAME to $REPLICAS replicas in namespace: $NAMESPACE"

             case $WORKLOAD_TYPE in
               "Deployment")
                 kubectl --insecure-skip-tls-verify scale deployment/$WORKLOAD_NAME --replicas=$REPLICAS -n $NAMESPACE
                 kubectl --insecure-skip-tls-verify rollout status deployment/$WORKLOAD_NAME -n $NAMESPACE --timeout=300s
                 ;;
               "StatefulSet")
                 kubectl --insecure-skip-tls-verify scale statefulset/$WORKLOAD_NAME --replicas=$REPLICAS -n $NAMESPACE
                 kubectl --insecure-skip-tls-verify rollout status statefulset/$WORKLOAD_NAME -n $NAMESPACE --timeout=300s
                 ;;
               "ReplicaSet")
                 kubectl --insecure-skip-tls-verify scale replicaset/$WORKLOAD_NAME --replicas=$REPLICAS -n $NAMESPACE
                 ;;
               *)
                 echo "Unsupported workload type for scaling: $WORKLOAD_TYPE"
                 exit 1
                 ;;
             esac

         - name: Verify scaling
           run: |
             export KUBECONFIG=kubeconfig.yaml
             WORKLOAD_NAME="${{ fromJson(inputs.port_context).entity.title }}"
             NAMESPACE="${{ fromJson(inputs.port_context).entity.properties.namespace }}"
             WORKLOAD_TYPE="${{ fromJson(inputs.port_context).entity.properties.kind }}"

             echo "Checking scaled $WORKLOAD_TYPE: $WORKLOAD_NAME"
             kubectl --insecure-skip-tls-verify get $WORKLOAD_TYPE $WORKLOAD_NAME -n $NAMESPACE
             kubectl --insecure-skip-tls-verify get pods -l app=$WORKLOAD_NAME -n $NAMESPACE

         - name: Inform Port about scaling success
           if: success()
           uses: port-labs/port-github-action@v1
           with:
             clientId: ${{ secrets.PORT_CLIENT_ID }}
             clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
             baseUrl: https://api.getport.io
             operation: PATCH_RUN
             runId: ${{ fromJson(inputs.port_context).runId }}
             status: 'SUCCESS'
             logMessage: ✅ Successfully scaled Kubernetes workload ${{ fromJson(inputs.port_context).entity.title }}
             summary: Kubernetes workload scaling completed successfully

         - name: Inform Port about scaling failure
           if: failure()
           uses: port-labs/port-github-action@v1
           with:
             clientId: ${{ secrets.PORT_CLIENT_ID }}
             clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
             baseUrl: https://api.getport.io
             operation: PATCH_RUN
             runId: ${{ fromJson(inputs.port_context).runId }}
             status: 'FAILURE'
             logMessage: ❌ Failed to scale Kubernetes workload ${{ fromJson(inputs.port_context).entity.title }}
             summary: Kubernetes workload scaling failed


Update kubernetes config GitHub workflow

1. Create the file .github/workflows/update-k8s-workload-config.yaml in the .github/workflows folder of your repository.

2. Copy and paste the following content:

   Update kubernetes config GitHub workflow (Click to expand)

   name: Update Kubernetes Workload Configuration

   on:
     workflow_dispatch:
       inputs:
         port_context:
           required: true
           description: 'Action and general context (blueprint, entity, run id, etc...)'
           type: string

   jobs:
     update-workload-config:
       runs-on: ubuntu-latest
       steps:
         - uses: 'actions/checkout@v4'

         - name: Inform Port of workflow start
           uses: port-labs/port-github-action@v1
           with:
             clientId: ${{ secrets.PORT_CLIENT_ID }}
             clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
             baseUrl: https://api.getport.io
             operation: PATCH_RUN
             runId: ${{fromJson(inputs.port_context).runId}}
             logMessage: Starting configuration update for Kubernetes workload ${{ fromJson(inputs.port_context).entity.title }}

         - name: Configure kubectl for local cluster
           run: |
             echo "${{ secrets.KUBECONFIG }}" | base64 -d > kubeconfig.yaml
             export KUBECONFIG=kubeconfig.yaml
             kubectl config current-context

         - name: Update workload configuration
           run: |
             WORKLOAD_NAME="${{ fromJson(inputs.port_context).entity.title }}"
             NAMESPACE="${{ fromJson(inputs.port_context).entity.properties.namespace }}"
             WORKLOAD_TYPE="${{ fromJson(inputs.port_context).entity.properties.kind }}"
             MEMORY_LIMIT="${{ fromJson(inputs.port_context).entity.properties.memory_limit }}"
             CPU_LIMIT="${{ fromJson(inputs.port_context).entity.properties.cpu_limit }}"
             MEMORY_REQUEST="${{ fromJson(inputs.port_context).entity.properties.memory_request }}"
             CPU_REQUEST="${{ fromJson(inputs.port_context).entity.properties.cpu_request }}"

             echo "Updating $WORKLOAD_TYPE: $WORKLOAD_NAME configuration in namespace: $NAMESPACE"
             echo "Memory Limit: $MEMORY_LIMIT, CPU Limit: $CPU_LIMIT"
             echo "Memory Request: $MEMORY_REQUEST, CPU Request: $CPU_REQUEST"

             # Create a patch for resource limits and requests
             cat > resource-patch.json << EOF
             {
               "spec": {
                 "template": {
                   "spec": {
                     "containers": [
                       {
                         "name": "$WORKLOAD_NAME",
                         "resources": {
                           "limits": {
                             "memory": "$MEMORY_LIMIT",
                             "cpu": "$CPU_LIMIT"
                           },
                           "requests": {
                             "memory": "$MEMORY_REQUEST",
                             "cpu": "$CPU_REQUEST"
                           }
                         }
                       }
                     ]
                   }
                 }
               }
             }
             EOF

             case $WORKLOAD_TYPE in
               "Deployment")
                 kubectl patch deployment $WORKLOAD_NAME -n $NAMESPACE --type='merge' -p "$(cat resource-patch.json)"
                 kubectl rollout status deployment/$WORKLOAD_NAME -n $NAMESPACE --timeout=300s
                 ;;
               "StatefulSet")
                 kubectl patch statefulset $WORKLOAD_NAME -n $NAMESPACE --type='merge' -p "$(cat resource-patch.json)"
                 kubectl rollout status statefulset/$WORKLOAD_NAME -n $NAMESPACE --timeout=300s
                 ;;
               "DaemonSet")
                 kubectl patch daemonset $WORKLOAD_NAME -n $NAMESPACE --type='merge' -p "$(cat resource-patch.json)"
                 kubectl rollout status daemonset/$WORKLOAD_NAME -n $NAMESPACE --timeout=300s
                 ;;
               *)
                 echo "Unsupported workload type for configuration update: $WORKLOAD_TYPE"
                 exit 1
                 ;;
             esac

         - name: Verify configuration update
           run: |
             WORKLOAD_NAME="${{ fromJson(inputs.port_context).entity.title }}"
             NAMESPACE="${{ fromJson(inputs.port_context).entity.properties.namespace }}"
             WORKLOAD_TYPE="${{ fromJson(inputs.port_context).entity.properties.kind }}"

             echo "Checking updated $WORKLOAD_TYPE: $WORKLOAD_NAME"
             kubectl get $WORKLOAD_TYPE $WORKLOAD_NAME -n $NAMESPACE
             kubectl describe $WORKLOAD_TYPE $WORKLOAD_NAME -n $NAMESPACE | grep -A 10 "Resources:"

         - name: Inform Port about config update success
           if: success()
           uses: port-labs/port-github-action@v1
           with:
             clientId: ${{ secrets.PORT_CLIENT_ID }}
             clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
             baseUrl: https://api.getport.io
             operation: PATCH_RUN
             runId: ${{ fromJson(inputs.port_context).runId }}
             status: 'SUCCESS'
             logMessage: ✅ Successfully updated Kubernetes workload configuration ${{ fromJson(inputs.port_context).entity.title }}
             summary: Kubernetes workload configuration update completed successfully

         - name: Inform Port about config update failure
           if: failure()
           uses: port-labs/port-github-action@v1
           with:
             clientId: ${{ secrets.PORT_CLIENT_ID }}
             clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
             baseUrl: https://api.getport.io
             operation: PATCH_RUN
             runId: ${{ fromJson(inputs.port_context).runId }}
             status: 'FAILURE'
             logMessage: ❌ Failed to update Kubernetes workload configuration ${{ fromJson(inputs.port_context).entity.title }}
             summary: Kubernetes workload configuration update failed

Create k8s pod healing AI agent

Next, we will create an AI agent that analyzes pod health issues and creates comprehensive remediation workflows.

1. Go to the AI Agents page of your portal.

2. Click on + AI Agent.

3. Toggle Json mode on.

4. Copy and paste the following JSON schema:

   K8s Pod healing AI agent configuration (Click to expand)

   {
     "identifier": "k8s_healing_agent",
     "title": "Kubernetes Healing Agent",
     "icon": "Cluster",
     "properties": {
       "description": "AI agent specialized in diagnosing and automatically fixing unhealthy Kubernetes workloads. Monitors pod health, identifies root causes, and applies appropriate fixes.",
       "status": "active",
       "allowed_blueprints": [
         "k8s_workload",
         "k8s_pod",
         "k8s_replicaSet",
         "k8s_namespace",
         "k8s_cluster"
       ],
       "allowed_actions": [
         "get_k8s_pod_logs",
         "restart_k8s_workload",
         "scale_k8s_workload",
         "update_k8s_workload_config",
         "create_k8s_fix_pr"
       ],
       "prompt": "You are a Kubernetes healing AI agent with access to comprehensive SDLC data and pod logs.\n\n**Your healing process:**\n1. **FIRST - Get Logs**: Always start by retrieving pod logs using the get_k8s_pod_logs action to understand what's actually happening\n2. **Analyze with Context**: Combine log data with SDLC information (recent deployments, code changes, configuration updates) to build a complete picture\n3. **Intelligent Diagnosis**: Based on logs and context, determine the root cause (crashes, resource constraints, configuration issues, etc.)\n4. **Targeted Fix**: Execute only the specific action that will resolve the issue:\n   - Restart for crashes and transient issues\n   - Scale for resource constraints (CPU/memory)\n   - Update config for resource limit issues\n   - Create PR for complex fixes requiring code changes\n5. **Explain Your Actions**: Always explain what you found in the logs and why you chose the specific fix in your response",
       "execution_mode": "Automatic",
       "conversation_starters": [
         "Analyze this unhealthy workload and suggest fixes",
         "This pod is in CrashLoopBackOff, what should I do?",
         "Help me diagnose why this workload is failing",
         "Scale up resources for this memory-constrained workload",
         "What's causing this ImagePullBackOff error?",
         "Why are my pods stuck in Pending state?"
       ]
     },
     "relations": {}
   }

5. Click Create to save the agent.

Set up automation

Next, we will create an automation to trigger the ai agent when the health of a Kubernetes pod moves from healthy to unhealthy.

Follow the steps below to create the automation:

1. Go to the automations page of your portal.

2. Click on + Automation.

3. Copy and paste the following JSON schema:

   Kubernetes workload healing automation (Click to expand)

   {
     "identifier": "k8s_workload_healing_automation",
     "title": "Kubernetes Workload Healing Automation",
     "description": "Automatically trigger AI healing agent when Kubernetes workloads become unhealthy",
     "icon": "Cluster",
     "trigger": {
       "type": "automation",
       "event": {
         "type": "ENTITY_UPDATED",
         "blueprintIdentifier": "k8s_workload"
       },
       "condition": {
         "type": "JQ",
         "expressions": [
           ".diff.before.properties.isHealthy == \"Healthy\"",
           ".diff.after.properties.isHealthy == \"Unhealthy\""
         ],
         "combinator": "and"
       }
     },
     "invocationMethod": {
       "type": "WEBHOOK",
       "url": "https://api.getport.io/v1/agent/k8s_healing_agent/invoke",
       "agent": false,
       "synchronized": true,
       "method": "POST",
       "headers": {
         "Content-Type": "application/json"
       },
       "body": {
         "prompt": "Workload `{{ .event.diff.after.title }}` in namespace `{{ .event.diff.after.properties.namespace }}` is **UNHEALTHY**.\n\n**Current State**: {{ .event.diff.after.properties.replicas }} replicas, {{ .event.diff.after.properties.readyReplicas }} ready\n\n**Healing Process**:\n1. First, get the pod logs to understand what's happening\n2. Analyze the logs with SDLC context (recent deployments, code changes)\n3. Determine the root cause and appropriate fix\n4. Execute only the targeted action that will resolve the issue\n\nStart by retrieving logs and then proceed with the analysis and fix.",
         "labels": {
           "source": "Automation",
           "workload_name": "{{ .event.diff.after.identifier }}",
           "namespace": "{{ .event.diff.after.properties.namespace }}",
           "trigger_type": "health_degradation"
         }
       }
     },
     "publish": true
   }

4. Click Create to save the automation.

Let's test it

Now let us test the complete workflow to ensure everything works correctly.

1. Go to your Kubernetes cluster and create a pod with an intentionally failing configuration (e.g., wrong image name, missing environment variables, or resource limits too low).
2. Wait for the pod to enter an unhealthy state (CrashLoopBackOff, ImagePullBackOff, etc.).
3. Verify that the pod appears in Port with the correct health status.
4. Check the audit log to monitor the automation and the ai agent.
5. Check your GitHub repository to monitor the workflow that has been triggered by the agent.
6. Check the PR that has been created by the agent for the fix.
7. Approve the PR to fix the issue and have pod healed.

Related guides

• Manage Kubernetes clusters
• Trigger GitHub Copilot from Port
• Set up the Task Manager AI agent
