Create a Jira Issue

Overview

An example of creating a Jira issue from Port using Port's self service actions.

Prerequisites

Jira API token with permissions to create new issues.
Install the GitLab integration.

Create Jira Blueprints

Install Port's Jira Integration for:

Instant Blueprints: Port creates blueprints for your Jira projects and issues, giving you a structured foundation.
Data Import: Existing Jira Software data is smoothly ingested into Port, eliminating manual imports.

Get Started

Steps

Create the following GitLab CI/CD variables:
- JIRA_API_TOKEN - Jira API token generated by the user.
- JIRA_USERNAME - The email of the Jira user that owns the Jira API token.
- JIRA_HOST - The URL of your Jira organization e.g. https://yourorg.atlassian.net
- PORT_CLIENT_ID - Your port client id. Get the credentials.
- PORT_CLIENT_SECRET - Your port client secret. Get the credentials.
Creating the action in Port

Report a bug (Click to expand)

{
  "identifier": "jiraIssue_report_a_bug",
  "title": "Report a bug",
  "icon": "Jira",
  "description": "Report a bug in Port to our product team.",
  "trigger": {
    "type": "self-service",
    "operation": "CREATE",
    "userInputs": {
      "properties": {
        "description": {
          "icon": "DefaultProperty",
          "title": "Description",
          "type": "string"
        },
        "short_title": {
          "icon": "DefaultProperty",
          "title": "Short title",
          "type": "string"
        },
        "issue_type": {
          "icon": "DefaultProperty",
          "title": "Issue Type",
          "type": "string",
          "default": "Task",
          "enum": [
            "Task",
            "Bug",
            "Story"
          ],
          "enumColors": {
            "Task": "lightGray",
            "Bug": "lightGray",
            "Story": "lightGray"
          }
        },
        "project": {
          "type": "string",
          "title": "Project",
          "blueprint": "jiraProject",
          "format": "entity"
        }
      },
      "required": [
        "short_title",
        "description",
        "issue_type",
        "project"
      ],
      "order": [
        "project",
        "short_title",
        "description",
        "issue_type"
      ]
    },
    "blueprintIdentifier": "jiraIssue"
  },
  "invocationMethod": {
    "type": "WEBHOOK",
    "url": "https://gitlab.com/api/v4/projects/<PROJECT_ID>/ref/main/trigger/pipeline?token=<PIPELINE_TRIGGER_TOKEN>",
    "agent": false,
    "synchronized": false,
    "method": "POST",
    "body": {
      "action": "{{ .action.identifier[(\"jiraIssue_\" | length):] }}",
      "resourceType": "run",
      "status": "TRIGGERED",
      "trigger": "{{ .trigger | {by, origin, at} }}",
      "context": {
        "entity": "{{.entity.identifier}}",
        "blueprint": "{{.action.blueprint}}",
        "runId": "{{.run.id}}"
      },
      "payload": {
        "entity": "{{ (if .entity == {} then null else .entity end) }}",
        "action": {
          "invocationMethod": {
            "type": "WEBHOOK",
            "url": "https://gitlab.com/api/v4/projects/<PROJECT_ID>/ref/main/trigger/pipeline?token=<PIPELINE_TRIGGER_TOKEN>",
            "agent": false,
            "synchronized": false,
            "method": "POST"
          },
          "trigger": "{{.trigger.operation}}"
        },
        "properties": {
          "{{if (.inputs | has(\"description\")) then \"description\" else null end}}": "{{.inputs.\"description\"}}",
          "{{if (.inputs | has(\"short_title\")) then \"short_title\" else null end}}": "{{.inputs.\"short_title\"}}",
          "{{if (.inputs | has(\"issue_type\")) then \"issue_type\" else null end}}": "{{.inputs.\"issue_type\"}}",
          "{{if (.inputs | has(\"project\")) then \"project\" else null end}}": "{{.inputs.\"project\" | if type == \"array\" then map(.identifier) else .identifier end}}"
        },
        "censoredProperties": "{{.action.encryptedProperties}}"
      }
    }
  },
  "requiredApproval": false
}

Create the .gitlab-ci.yaml file in your gitlab project:

Report a bug pipeline (Click to expand)

stages:
  - prerequisites
  - deploy
  - port-update

image: alpine:latest

variables:
  JIRA_USERNAME: ${JIRA_USERNAME}
  JIRA_API_TOKEN : ${JIRA_API_TOKEN}
  JIRA_HOST: ${JIRA_HOST}
  PORT_CLIENT_ID: ${PORT_CLIENT_ID}
  PORT_CLIENT_SECRET: ${PORT_CLIENT_SECRET}


fetch-port-access-token:
  stage: prerequisites
  except:
    - pushes
  before_script:
    - apk update
    - apk add --upgrade curl jq -q
  script:
    - |
      echo "Getting access token from Port API"
      accessToken=$(curl -X POST \
        -H 'Content-Type: application/json' \
        -d '{"clientId": "'"$PORT_CLIENT_ID"'", "clientSecret": "'"$PORT_CLIENT_SECRET"'"}' \
        -s 'https://api.getport.io/v1/auth/access_token' | jq -r '.accessToken')

      echo "ACCESS_TOKEN=$accessToken" >> data.env
      runId=$(cat $TRIGGER_PAYLOAD | jq -r '.context.runId')

      curl -X POST \
        -H 'Content-Type: application/json' \
        -H "Authorization: Bearer $accessToken" \
        -d '{"message":"🏃‍♂️ Starting action to create a jira issue"}' \
        "https://api.getport.io/v1/actions/runs/$runId/logs"
      curl -X PATCH \
        -H 'Content-Type: application/json' \
        -H "Authorization: Bearer $accessToken" \
        -d '{"link":"'"$CI_PIPELINE_URL"'"}' \
        "https://api.getport.io/v1/actions/runs/$runId"
  artifacts:
    reports:
      dotenv: data.env

create-jira-issue:
  stage: deploy
  needs:
    - job: fetch-port-access-token
      artifacts: true
  except:
    - pushes
  before_script:
    - apk update
    - apk add --upgrade curl jq -q
  script:
    - |
      echo "Creating Jira Issue"
      ISSUE_SUMMARY=$(cat $TRIGGER_PAYLOAD | jq -r '.payload.properties.short_title')
      ISSUE_DESCRIPTION=$(cat $TRIGGER_PAYLOAD | jq -r '.payload.properties.description')
      ISSUE_TYPE=$(cat $TRIGGER_PAYLOAD | jq -r '.payload.properties.issue_type')
      JIRA_PROJECT_KEY=$(cat $TRIGGER_PAYLOAD | jq -r '.payload.properties.project')

      issueJson='{
        "fields": {
            "project": {
              "key": "'"$JIRA_PROJECT_KEY"'"
            },
            "summary": "'"$ISSUE_SUMMARY"'",
            "description": "'"$ISSUE_DESCRIPTION"'",
            "issuetype": {
              "name": "'"$ISSUE_TYPE"'"
            }
        }
      }'

      echo "$issueJson"

      response=$(curl -u $JIRA_USERNAME:$JIRA_API_TOKEN -X POST -H "Content-Type: application/json" \
        --data "$issueJson" \
        "$JIRA_HOST/rest/api/2/issue/")

      echo "$response"

      id=$(echo "$response" | jq -r '.id')
      key=$(echo "$response" | jq -r '.key')
      self=$(echo "$response" | jq -r '.self')

      echo "ISSUE_ID=$id" >> data.env
      echo "ISSUE_KEY=$key" >> data.env
      echo "ISSUE_URL=$self" >> data.env

      echo "Created issue with ID: $id, Key: $key, Self: $self"
  artifacts:
    reports:
      dotenv: data.env


create-port-entity:
  stage: port-update
  needs:
    - job: create-jira-issue
      artifacts: true
  except:
    - pushes
  before_script:
    - apk update
    - apk add --upgrade curl jq -q
  script:
    - |
      echo "Creating Port entity to match new Jira ticket"
      accessToken=$(curl -X POST \
        -H 'Content-Type: application/json' \
        -d '{"clientId": "'"$PORT_CLIENT_ID"'", "clientSecret": "'"$PORT_CLIENT_SECRET"'"}' \
        -s 'https://api.getport.io/v1/auth/access_token' | jq -r '.accessToken')

      INSTANCE_ID=$(cat $TRIGGER_PAYLOAD | jq -r '.context.entity')
      BLUEPRINT=$(cat $TRIGGER_PAYLOAD | jq -r '.context.blueprint')
      runId=$(cat $TRIGGER_PAYLOAD | jq -r '.context.runId')

      ISSUE_SUMMARY=$(cat $TRIGGER_PAYLOAD | jq -r '.payload.properties.short_title')
      ISSUE_DESCRIPTION=$(cat $TRIGGER_PAYLOAD | jq -r '.payload.properties.description')
      ISSUE_TYPE=$(cat $TRIGGER_PAYLOAD | jq -r '.payload.properties.issue_type')
      JIRA_PROJECT_KEY=$(cat $TRIGGER_PAYLOAD | jq -r '.payload.properties.project')

      curl -X POST \
          -H 'Content-Type: application/json' \
          -H "Authorization: Bearer $accessToken" \
          -d '{"statusLabel": "Creating Entity", "message":"🚀 Creating the Jira ticket entity in Port!"}' \
          "https://api.getport.io/v1/actions/runs/$runId/logs"

      log='{
         "identifier": "'"$ISSUE_KEY"'",
         "title": "'"$ISSUE_SUMMARY"'",
         "blueprint": "'"$BLUEPRINT"'",
         "properties": {
            "description": "'"$ISSUE_DESCRIPTION"'",
            "issueType": "'"$ISSUE_TYPE"'",
            "url": "'"$ISSUE_URL"'"
          },
          "relations": {
            "project": "'"$JIRA_PROJECT_KEY"'"
          }
        }'

      echo "$log"

      curl --location --request POST "https://api.getport.io/v1/blueprints/$BLUEPRINT/entities?create_missing_related_entities=false&run_id=$runId" \
        -H "Authorization: Bearer $accessToken" \
        -H "Content-Type: application/json" \
        -d "$log"



update-run-status:
  stage: port-update
  needs:
    - job: create-port-entity
      artifacts: true
  except:
    - pushes
  before_script:
    - apk update
    - apk add --upgrade curl jq -q
  script:
    - |
      echo "Updating Port action run status and final logs"
      accessToken=$(curl -X POST \
        -H 'Content-Type: application/json' \
        -d '{"clientId": "'"$PORT_CLIENT_ID"'", "clientSecret": "'"$PORT_CLIENT_SECRET"'"}' \
        -s 'https://api.getport.io/v1/auth/access_token' | jq -r '.accessToken')
      runId=$(cat $TRIGGER_PAYLOAD | jq -r '.context.runId')

      curl -X POST \
        -H 'Content-Type: application/json' \
        -H "Authorization: Bearer $accessToken" \
        -d '{"terminationStatus":"SUCCESS", "message":"✅ Created new Jira 🔗 Issue!"}' \
        "https://api.getport.io/v1/actions/runs/$runId/logs"

Let's test it!

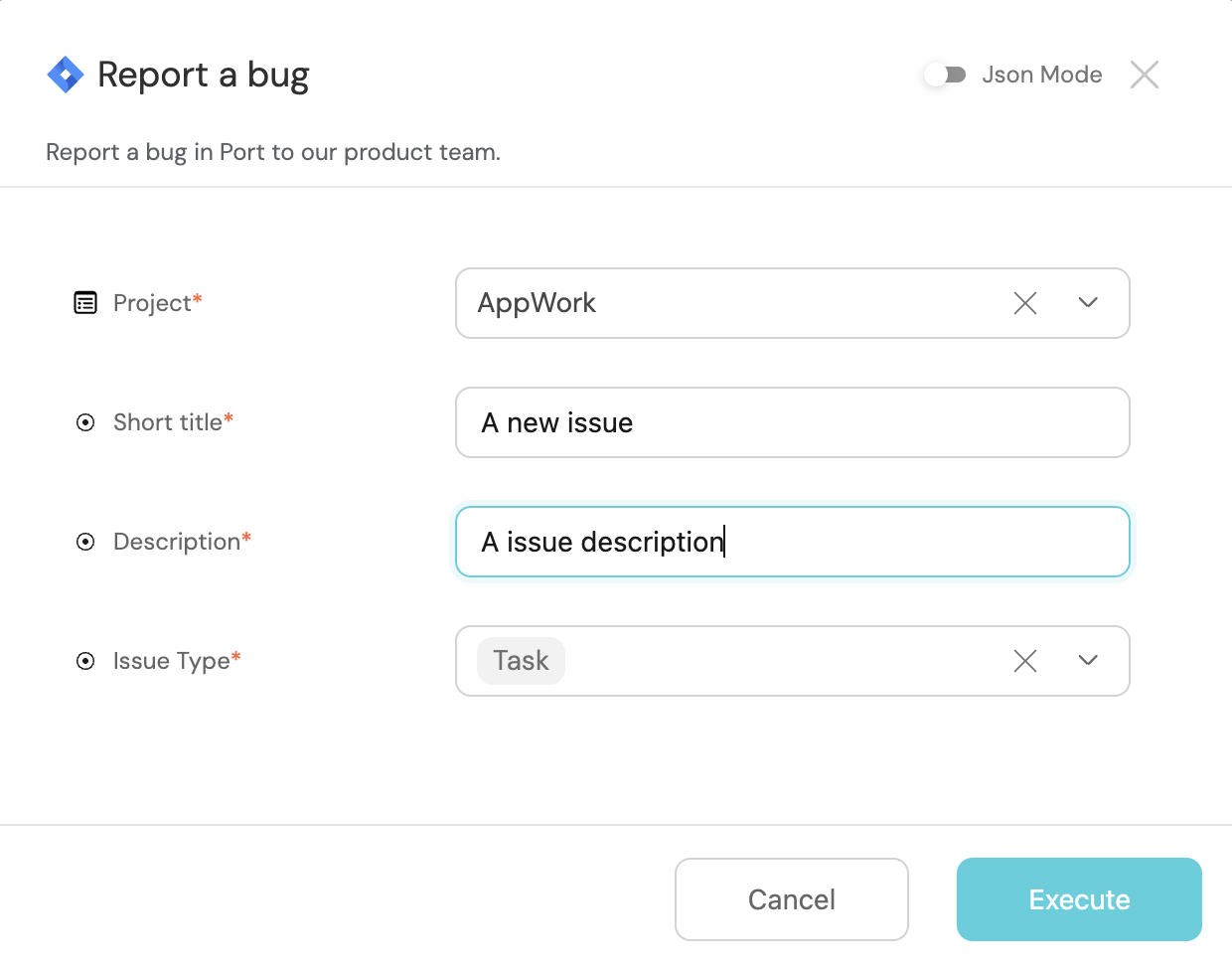

Trigger the action from Port's self-service hub
