Deployment/Rollback

In this guide, we will create a self-service action in Port that executes a GitHub workflow to perform either a deployment or rollback operation using ArgoCD.

Updating Environments

It's important to note that Deployment and Rollback operations essentially perform the same operation, with the difference being that Rollback occurs in the production environment and requires manual approval.

Both operations involve updating the deployment manifest with a new container image and creating a GitHub pull request (PR) for it. The workflow can optionally merge the PR when enabled.

Prerequisites

Install Port's GitHub app by clicking here
This guide assumes the presence of a Service and Image blueprint representing your repository where ArgoCD lives and your container image
A repository to contain your ArgoCD deployment manifest and action resources i.e. the github workflow file

Below you can find the JSON for the Service and Image blueprints required for the guide:

Service blueprint (click to expand)

{
  "identifier": "service",
  "title": "Service",
  "icon": "Github",
  "schema": {
    "properties": {
      "readme": {
        "title": "README",
        "type": "string",
        "format": "markdown",
        "icon": "Book"
      },
      "url": {
        "title": "URL",
        "format": "url",
        "type": "string",
        "icon": "Link"
      },
      "language": {
        "icon": "Git",
        "type": "string",
        "title": "Language",
        "enum": [
          "GO",
          "Python",
          "Node",
          "React"
        ],
        "enumColors": {
          "GO": "red",
          "Python": "green",
          "Node": "blue",
          "React": "yellow"
        }
      },
      "slack": {
        "icon": "Slack",
        "type": "string",
        "title": "Slack",
        "format": "url"
      },
      "code_owners": {
        "title": "Code owners",
        "description": "This service's code owners",
        "type": "string",
        "icon": "TwoUsers"
      },
      "type": {
        "title": "Type",
        "description": "This service's type",
        "type": "string",
        "enum": [
          "Backend",
          "Frontend",
          "Library"
        ],
        "enumColors": {
          "Backend": "purple",
          "Frontend": "pink",
          "Library": "green"
        },
        "icon": "DefaultProperty"
      },
      "lifecycle": {
        "title": "Lifecycle",
        "type": "string",
        "enum": [
          "Production",
          "Experimental",
          "Deprecated"
        ],
        "enumColors": {
          "Production": "green",
          "Experimental": "yellow",
          "Deprecated": "red"
        },
        "icon": "DefaultProperty"
      },
      "locked_in_prod": {
        "icon": "DefaultProperty",
        "title": "Locked in Prod",
        "type": "boolean",
        "default": false
      },
      "locked_reason_prod": {
        "icon": "DefaultProperty",
        "title": "Locked Reason Prod",
        "type": "string"
      }
    },
    "required": []
  },
  "mirrorProperties": {},
  "calculationProperties": {},
  "aggregationProperties": {},
  "relations": {}
}

Image blueprint (click to expand)

{
  "identifier": "image",
  "description": "This blueprint represents an image",
  "title": "Image",
  "icon": "AWS",
  "schema": {
    "properties": {
      "registryId": {
        "type": "string",
        "title": "Registry ID",
        "description": "The ID of the registry",
        "icon": "DefaultProperty"
      },
      "digest": {
        "type": "string",
        "title": "Image Digest",
        "description": "SHA256 digest of image manifest",
        "icon": "DefaultProperty"
      },
      "tags": {
        "type": "array",
        "title": "Image Tags",
        "description": "List of tags for the image",
        "icon": "DefaultProperty"
      },
      "pushedAt": {
        "type": "string",
        "title": "Pushed At",
        "description": "Date and time the image was pushed to the repository",
        "format": "date-time",
        "icon": "DefaultProperty"
      },
      "lastRecordedPullTime": {
        "type": "string",
        "title": "Last Recorded Pull Time",
        "description": "Date and time the image was last pulled",
        "format": "date-time",
        "icon": "DefaultProperty"
      },
      "triggeredBy": {
        "type": "string",
        "icon": "TwoUsers",
        "title": "Triggered By",
        "description": "The user who triggered the run"
      },
      "commitHash": {
        "type": "string",
        "title": "Commit Hash",
        "icon": "DefaultProperty"
      },
      "pullRequestId": {
        "type": "string",
        "icon": "Git",
        "title": "Pull Request ID"
      },
      "workflowId": {
        "type": "string",
        "title": "Workflow ID",
        "icon": "DefaultProperty"
      },
      "image_branch": {
        "title": "Image branch",
        "type": "string",
        "description": "The git branch associated with the repository used to build the Image"
      }
    },
    "required": []
  },
  "mirrorProperties": {},
  "calculationProperties": {},
  "aggregationProperties": {},
  "relations": {}
}

Ingest Images

If you do not have the images ingested already, we recommend using our AWS ECR script, Google Container Registry script, JFrog build script or GitHub packages script to sync data to your catalog

Create Github workflow

Follow these steps to get started:

Create the following GitHub Action secrets:
- PORT_CLIENT_ID - Port Client ID learn more
- PORT_CLIENT_SECRET - Port Client Secret learn more
- MY_GITHUB_TOKEN - a Classic Personal Access Token with the repo scope and the following permissions: pull_requests:write (to create PR) and contents:write (to merge PR)

Create a Port action in the self-service page on the Service blueprint with the following JSON definition:

Port Action: Rollback Deployment

tip

<GITHUB-ORG> - your GitHub organization or user name.
<GITHUB-REPO-NAME> - your GitHub repository name.

{
  "identifier": "rollback_deployment",
  "title": "Rollback Deployment",
  "icon": "DefaultProperty",
  "description": "Rollback the deployment to the previous version",
  "trigger": {
    "type": "self-service",
    "operation": "DAY-2",
    "userInputs": {
      "properties": {
        "auto_merge": {
          "type": "boolean",
          "title": "Auto Merge",
          "default": false,
          "description": "Automatically merge the PR after the action is completed"
        },
        "image": {
          "type": "string",
          "title": "Image",
          "format": "entity",
          "blueprint": "image"
        }
      },
      "required": [
        "image"
      ]
    },
    "blueprintIdentifier": "service"
  },
  "invocationMethod": {
    "type": "GITHUB",
    "org": "<GITHUB-ORG>",
    "repo": "<GITHUB-REPO-NAME>",
    "workflow": "rollback.yaml",
    "workflowInputs": {
      "auto_merge": "{{.inputs.auto_merge}}",
      "image": "{{.inputs.image.title}}",
      "port_context": {
        "blueprint": "{{.action.blueprint}}",
        "entity": "{{.entity}}",
        "runId": "{{.run.id}}",
        "trigger": "{{.trigger}}"
      }
    },
    "reportWorkflowStatus": true
  }
}

Create a workflow file under .github/workflows/rollback.yaml with the following content:

GitHub workflow script

Variable replacement

<DEPLOYMENT-MANIFEST-PATH> - Path to the ArgoCD deployment manifest such as app/deployment.yaml.
<IMAGE-PROPERTY-PATH> - Path to where the deployment image is specified in the deployment manifest such as spec.template.spec.containers[0].image.

rollback.yaml
name: Rollback ArgoCD Deployment Image

on:
  workflow_dispatch:
    inputs:
      image:
        description: The new image to use for the rollback
        required: true
        type: string
      auto_merge:
        description: Whether the created PR should be merged automatically
        required: true
        type: boolean
      port_context:
        required: true
        description: >-
          action port_context: blueprint, run id, etc
jobs:
  rollback-deployment:
    runs-on: ubuntu-latest
    steps:
      - name: Inform execution of request to rollback deployment image
        uses: port-labs/port-github-action@v1
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          baseUrl: https://api.getport.io
          operation: PATCH_RUN
          runId: ${{fromJson(inputs.port_context).runId}}
          logMessage: "About to rollback deployment image in argocd..."

      - uses: actions/checkout@v4
      - name: Create PR
        id: create-pr
        uses: fjogeleit/yaml-update-action@main
        with:
          valueFile: "<DEPLOYMENT-MANIFEST-PATH>" ## replace value
          propertyPath: "<IMAGE-PROPERTY-PATH>" ## replace value
          value: "${{ github.event.inputs.image }}"
          commitChange: true
          token: ${{ secrets.MY_GITHUB_TOKEN }}
          targetBranch: main
          masterBranchName: main
          createPR: true
          branch: deployment/${{ fromJson(inputs.port_context).runId }}
          message: "Update deployment image to ${{ github.event.inputs.image }}"

      - name: Inform Port about pull request creation status - Success
        if: steps.create-pr.outcome == 'success'
        uses: port-labs/port-github-action@v1
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          baseUrl: https://api.getport.io
          operation: PATCH_RUN
          runId: ${{ fromJson(inputs.port_context).runId }}
          logMessage: |
            'The creation of PR was successful: ${{fromJson(steps.create-pr.outputs.pull_request).html_url}}'
          link: '["${{fromJson(steps.create-pr.outputs.pull_request).html_url}}"]'

      - name: Inform Port about pull request creation status - Failure
        if: steps.create-pr.outcome != 'success'
        uses: port-labs/port-github-action@v1
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          baseUrl: https://api.getport.io
          operation: PATCH_RUN
          runId: ${{ fromJson(inputs.port_context).runId }}
          logMessage: |
            The creation of PR was not successful.

      - name: Merge Pull Request
        if: ${{ github.event.inputs.auto_merge == 'true' && steps.create-pr.outcome == 'success' }}
        env:
          GH_TOKEN: ${{ secrets.MY_GITHUB_TOKEN }}
          PR_URL: ${{ fromJson(steps.create-pr.outputs.pull_request).url }}
        run: |
          HTTP_STATUS=$(curl -s -o /dev/null -w "%{http_code}" \
            -X PUT \
            -H "Accept: application/vnd.github+json" \
            -H "Authorization: Bearer $GH_TOKEN" \
            "$PR_URL/merge")

          echo "HTTP Status: $HTTP_STATUS"

          if [ $HTTP_STATUS -eq 200 ]; then
            echo "Pull request merged successfully."
            echo "merge_status=successful" >> $GITHUB_ENV
          else
            echo "Failed to merge PR. HTTP Status: $HTTP_STATUS"
            echo "merge_status=unsuccessful" >> $GITHUB_ENV
          fi

      - name: Inform completion of Argocd rollback into Port
        if: ${{ github.event.inputs.auto_merge == 'true' }}
        uses: port-labs/port-github-action@v1
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          baseUrl: https://api.getport.io
          operation: PATCH_RUN
          runId: ${{fromJson(inputs.port_context).runId}}
          logMessage: "Pull request merge was ${{ env.merge_status }}"

Trigger the action from the self-service page of your Port application.

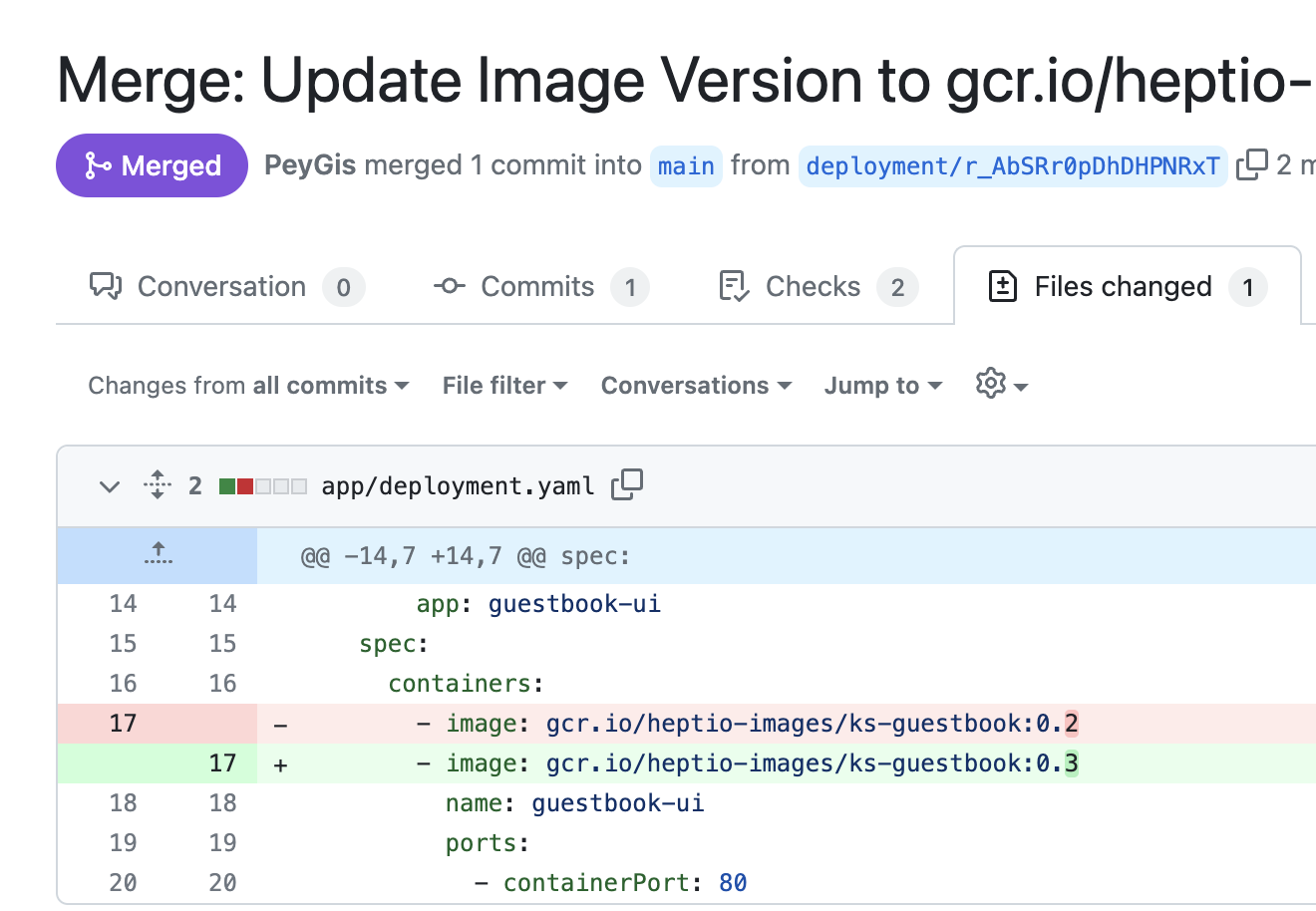

You should now be able to see a Github pull request created and merged for the argocd deployment.
