Scaffold BitBucket Repositories Using Cookiecutter

This example demonstrates how to quickly scaffold BitBucket repositories using a Cookiecutter Template via Port Actions.

In addition, as cookiecutter is an open-source project you can make your own project template, learn more about it here.

Example - scaffolding golang template​

Follow these steps to get started with the Golang template:

  1. Create the following as Jenkins Credentials:

    1. BITBUCKET_USERNAME - a user with access to the BitBucket Workspace and Project.
    2. BITBUCKET_APP_PASSWORD - an App Password with the Repositories:Read and Repositories:Write permissions permissions.
    3. PORT_CLIENT_ID - Port Client ID learn more.
    4. PORT_CLIENT_SECRET - Port Client Secret learn more.

  2. Create a Port blueprint with the following properties:

note

Keep in mind this can be any blueprint you would like and this is just an example.

{
  "identifier": "microservice",
  "title": "Microservice",
  "icon": "Microservice",
  "schema": {
    "properties": {
      "description": {
        "title": "Description",
        "type": "string"
      },
      "url": {
        "title": "URL",
        "format": "url",
        "type": "string"
      }
    },
    "required": []
  },
  "mirrorProperties": {},
  "calculationProperties": {},
  "relations": {}
}
  1. Create Port action using the following JSON definition:
note

Make sure to replace the placeholders for JENKINS_URL and JOB_TOKEN.

{
  "identifier": "microservice_scaffold_bitbucket",
  "title": "Scaffold Golang Microservice - BitBucket",
  "icon": "Go",
  "description": "Creates a repo for new golang Microservice on Bitbucket",
  "trigger": {
    "type": "self-service",
    "operation": "CREATE",
    "userInputs": {
      "properties": {
        "repo_name": {
          "icon": "Microservice",
          "title": "Repo Name",
          "type": "string"
        },
        "bitbucket_workspace_name": {
          "icon": "BitBucket",
          "title": "Bitbucket Workspace Name",
          "type": "string"
        },
        "bitbucket_project_key": {
          "title": "Bitbucket Project Key",
          "icon": "BitBucket",
          "description": "Bitbucket project key symbol",
          "type": "string"
        }
      },
      "required": [
        "repo_name",
        "bitbucket_workspace_name",
        "bitbucket_project_key"
      ]
    },
    "blueprintIdentifier": "microservice"
  },
  "invocationMethod": {
    "type": "WEBHOOK",
    "url": "https://<JENKINS_URL>/generic-webhook-trigger/invoke?token=<JOB_TOKEN>",
    "agent": false,
    "synchronized": false,
    "method": "POST",
    "body": {
      "action": "{{ .action.identifier[(\"microservice_\" | length):] }}",
      "resourceType": "run",
      "status": "TRIGGERED",
      "trigger": "{{ .trigger | {by, origin, at} }}",
      "context": {
        "entity": "{{.entity.identifier}}",
        "blueprint": "{{.action.blueprint}}",
        "runId": "{{.run.id}}"
      },
      "payload": {
        "entity": "{{ (if .entity == {} then null else .entity end) }}",
        "action": {
          "invocationMethod": {
            "type": "WEBHOOK",
            "agent": false,
            "url": "https://<JENKINS_URL>/generic-webhook-trigger/invoke?token=<JOB_TOKEN>",
            "synchronized": false,
            "method": "POST"
          },
          "trigger": "{{.trigger.operation}}"
        },
        "properties": {
          "{{if (.inputs | has(\"repo_name\")) then \"repo_name\" else null end}}": "{{.inputs.\"repo_name\"}}",
          "{{if (.inputs | has(\"bitbucket_workspace_name\")) then \"bitbucket_workspace_name\" else null end}}": "{{.inputs.\"bitbucket_workspace_name\"}}",
          "{{if (.inputs | has(\"bitbucket_project_key\")) then \"bitbucket_project_key\" else null end}}": "{{.inputs.\"bitbucket_project_key\"}}"
        },
        "censoredProperties": "{{.action.encryptedProperties}}"
      }
    }
  }
}

  1. Create a Jenkins Pipeline with the following configuration:

    1. Enable webhook trigger for a pipeline

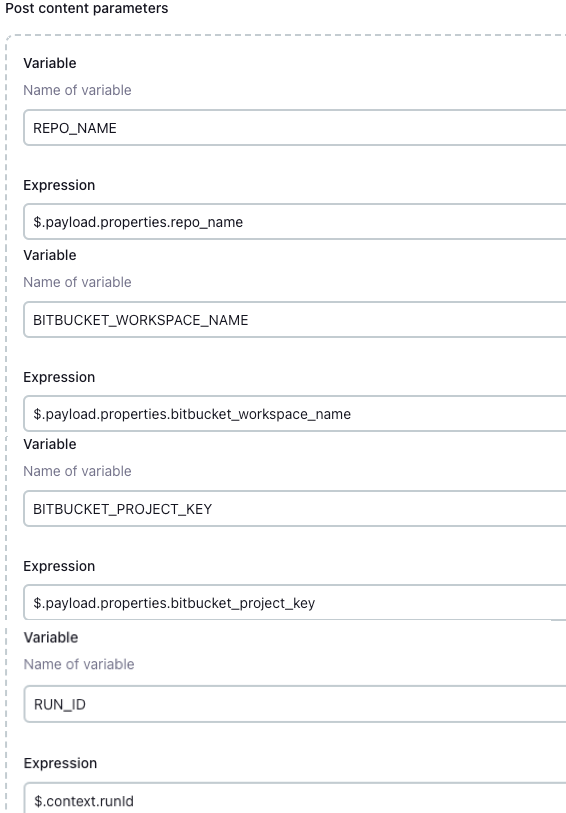

    2. Define variables for a pipeline: Define the REPO_NAME, BITBUCKET_WORKSPACE_NAME, BITBUCKET_PROJECT_KEY and RUN_ID variables.

      Define Vars

    3. Token Setup: Define the token to match JOB_TOKEN as configured in your Port Action.

  2. Add the following content to the new pipeline:

Jenkins Pipeline Script
import groovy.json.JsonSlurper

pipeline {
    agent any

    environment {
        COOKIECUTTER_TEMPLATE = 'https://github.com/lacion/cookiecutter-golang'
        REPO_NAME = "${REPO_NAME}"
        BITBUCKET_WORKSPACE_NAME = "${BITBUCKET_WORKSPACE_NAME}"
        BITBUCKET_PROJECT_KEY = "${BITBUCKET_PROJECT_KEY}"
        SCAFFOLD_DIR = "scaffold_${REPO_NAME}"
        PORT_ACCESS_TOKEN = ""
        PORT_BLUEPRINT_ID = "microservice"
        PORT_RUN_ID = "${RUN_ID}"
    }

    stages {
        stage('Get access token') {
            steps {
                script {
                    withCredentials([
                        string(credentialsId: 'PORT_CLIENT_ID', variable: 'PORT_CLIENT_ID'),
                        string(credentialsId: 'PORT_CLIENT_SECRET', variable: 'PORT_CLIENT_SECRET')
                    ]) {
                        // Execute the curl command and capture the output
                        def result = sh(returnStdout: true, script: """
                            accessTokenPayload=\$(curl -X POST \
                                -H "Content-Type: application/json" \
                                -d '{"clientId": "${PORT_CLIENT_ID}", "clientSecret": "${PORT_CLIENT_SECRET}"}' \
                                -s "https://api.getport.io/v1/auth/access_token")
                            echo \$accessTokenPayload
                        """)

                        // Parse the JSON response using JsonSlurper
                        def jsonSlurper = new JsonSlurper()
                        def payloadJson = jsonSlurper.parseText(result.trim())

                        // Access the desired data from the payload
                        PORT_ACCESS_TOKEN = payloadJson.accessToken
                    }

                }
            }
        } // end of stage Get access token

        stage('Create BitBucket Repository') {
            steps {
                script {
                    def logs_report_response = sh(script: """
                        curl -X POST \
                          -H "Content-Type: application/json" \
                          -H "Authorization: Bearer ${PORT_ACCESS_TOKEN}" \
                          -d '{"message": "Creating BitBucket repository: ${REPO_NAME} in Workspace: ${BITBUCKET_WORKSPACE_NAME}, Project: ${BITBUCKET_PROJECT_KEY}..."}' \
                             "https://api.getport.io/v1/actions/runs/${PORT_RUN_ID}/logs"
                    """, returnStdout: true)

                    println(logs_report_response)
                }
                script {
                    withCredentials([
                        string(credentialsId: 'BITBUCKET_USERNAME', variable: 'BITBUCKET_USERNAME'),
                        string(credentialsId: 'BITBUCKET_APP_PASSWORD', variable: 'BITBUCKET_APP_PASSWORD')
                    ]) {
                        sh """
                            curl -i -u ${BITBUCKET_USERNAME}:${BITBUCKET_APP_PASSWORD} \\
                            -d '{"is_private": true, "scm": "git", "project": {"key": "${BITBUCKET_PROJECT_KEY}"}}' \\
                            https://api.bitbucket.org/2.0/repositories/${BITBUCKET_WORKSPACE_NAME}/${REPO_NAME}
                        """
                    }
                }
            }
        } // end of stage Create BitBucket Repository

        stage('Scaffold Cookiecutter Template') {
            steps {
                script {
                    def logs_report_response = sh(script: """
                        curl -X POST \
                          -H "Content-Type: application/json" \
                          -H "Authorization: Bearer ${PORT_ACCESS_TOKEN}" \
                          -d '{"message": "Scaffolding ${REPO_NAME}..."}' \
                             "https://api.getport.io/v1/actions/runs/${PORT_RUN_ID}/logs"
                    """, returnStdout: true)

                    println(logs_report_response)
                }
                script {
                    withCredentials([
                        string(credentialsId: 'BITBUCKET_USERNAME', variable: 'BITBUCKET_USERNAME'),
                        string(credentialsId: 'BITBUCKET_APP_PASSWORD', variable: 'BITBUCKET_APP_PASSWORD')
                    ]) {
                        def yamlContent = """
default_context:
  full_name: "Full Name"
  github_username: "bitbucketuser"
  app_name: "${REPO_NAME}"
  project_short_description": "A Golang project."
  docker_hub_username: "dockerhubuser"
  docker_image: "dockerhubuser/alpine-base-image:latest"
  docker_build_image: "dockerhubuser/alpine-golang-buildimage"
"""
                    // Write the YAML content to a file
                    writeFile(file: 'cookiecutter.yaml', text: yamlContent)

                        sh("""
                            rm -rf ${SCAFFOLD_DIR} ${REPO_NAME}
                            git clone https://${BITBUCKET_USERNAME}:${BITBUCKET_APP_PASSWORD}@bitbucket.org/${BITBUCKET_WORKSPACE_NAME}/${REPO_NAME}.git

                            cookiecutter ${COOKIECUTTER_TEMPLATE} --output-dir ${SCAFFOLD_DIR} --no-input --config-file cookiecutter.yaml -f

                            rm -rf ${SCAFFOLD_DIR}/${REPO_NAME}/.git*
                            cp -r ${SCAFFOLD_DIR}/${REPO_NAME}/* "${REPO_NAME}/"

                            cd ${REPO_NAME}
                            git config user.name "Jenkins Pipeline Bot"
                            git config user.email "jenkins-pipeline[bot]@users.noreply.jenkins.com"
                            git add .
                            git commit -m "Scaffolded project ${REPO_NAME}"
                            git push -u origin master
                            cd ..

                            rm -rf ${SCAFFOLD_DIR} ${REPO_NAME}
                        """)
                    }

                }
            }
        } // end of stage Clone Cookiecutter Template

        stage('CREATE Microservice entity') {
            steps {
                script {
                    def logs_report_response = sh(script: """
                        curl -X POST \
                          -H "Content-Type: application/json" \
                          -H "Authorization: Bearer ${PORT_ACCESS_TOKEN}" \
                          -d '{"message": "Creating ${REPO_NAME} Microservice Port entity..."}' \
                             "https://api.getport.io/v1/actions/runs/${PORT_RUN_ID}/logs"
                    """, returnStdout: true)

                    println(logs_report_response)
                }
                script {
                    def status_report_response = sh(script: """
						curl --location --request POST "https://api.getport.io/v1/blueprints/$PORT_BLUEPRINT_ID/entities?upsert=true&run_id=$PORT_RUN_ID&create_missing_related_entities=true" \
        --header "Authorization: Bearer $PORT_ACCESS_TOKEN" \
        --header "Content-Type: application/json" \
        --data-raw '{
				"identifier": "${REPO_NAME}",
				"title": "${REPO_NAME}",
				"properties": {"description":"${REPO_NAME} golang project","url":"https://bitbucket.org/${BITBUCKET_WORKSPACE_NAME}/${REPO_NAME}/src"},
				"relations": {}
			}'

                    """, returnStdout: true)

                    println(status_report_response)
                }
            }
        } // end of stage CREATE Microservice entity

        stage('Update Port Run Status') {
            steps {
                script {
                    def status_report_response = sh(script: """
                        curl -X PATCH \
                          -H "Content-Type: application/json" \
                          -H "Authorization: Bearer ${PORT_ACCESS_TOKEN}" \
                          -d '{"status":"SUCCESS", "message": {"run_status": "Scaffold Jenkins Pipeline completed successfully!"}}' \
                             "https://api.getport.io/v1/actions/runs/${PORT_RUN_ID}"
                    """, returnStdout: true)

                    println(status_report_response)
                }
            }
        } // end of stage Update Port Run Status
    }

    post {

        failure {
            // Update Port Run failed.
            script {
                def status_report_response = sh(script: """
                    curl -X PATCH \
                        -H "Content-Type: application/json" \
                        -H "Authorization: Bearer ${PORT_ACCESS_TOKEN}" \
                        -d '{"status":"FAILURE", "message": {"run_status": "Failed to Scaffold ${REPO_NAME}"}}' \
                            "https://api.getport.io/v1/actions/runs/${PORT_RUN_ID}"
                """, returnStdout: true)

                println(status_report_response)
            }
        }

        // Clean after build
        always {
            cleanWs(cleanWhenNotBuilt: false,
                    deleteDirs: true,
                    disableDeferredWipeout: false,
                    notFailBuild: true,
                    patterns: [[pattern: '.gitignore', type: 'INCLUDE'],
                               [pattern: '.propsfile', type: 'EXCLUDE']])
        }
    }
}
  1. Trigger the action from the Self-service tab of your Port application.
