Visualize and manage your Statuspage incidents and components

This guide demonstrates how to bring your Statuspage incidents and components management experience into Port. You will learn how to:

Ingest Statuspage incidents and components data into Port's software catalog using Port's Statuspage integration.
Set up self-service actions to create, update, and manage incidents and components.
Create automations to reflect changes in Port.

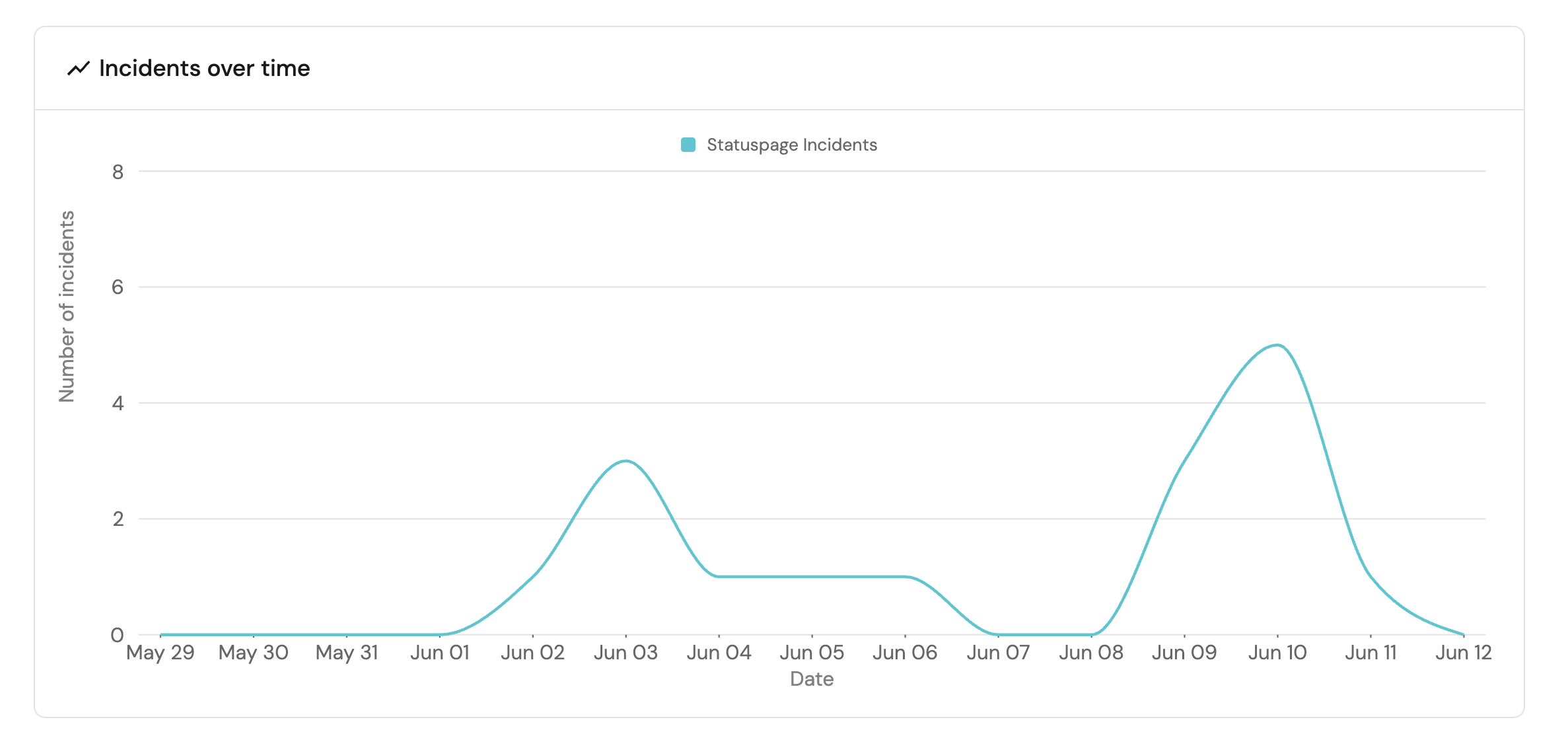

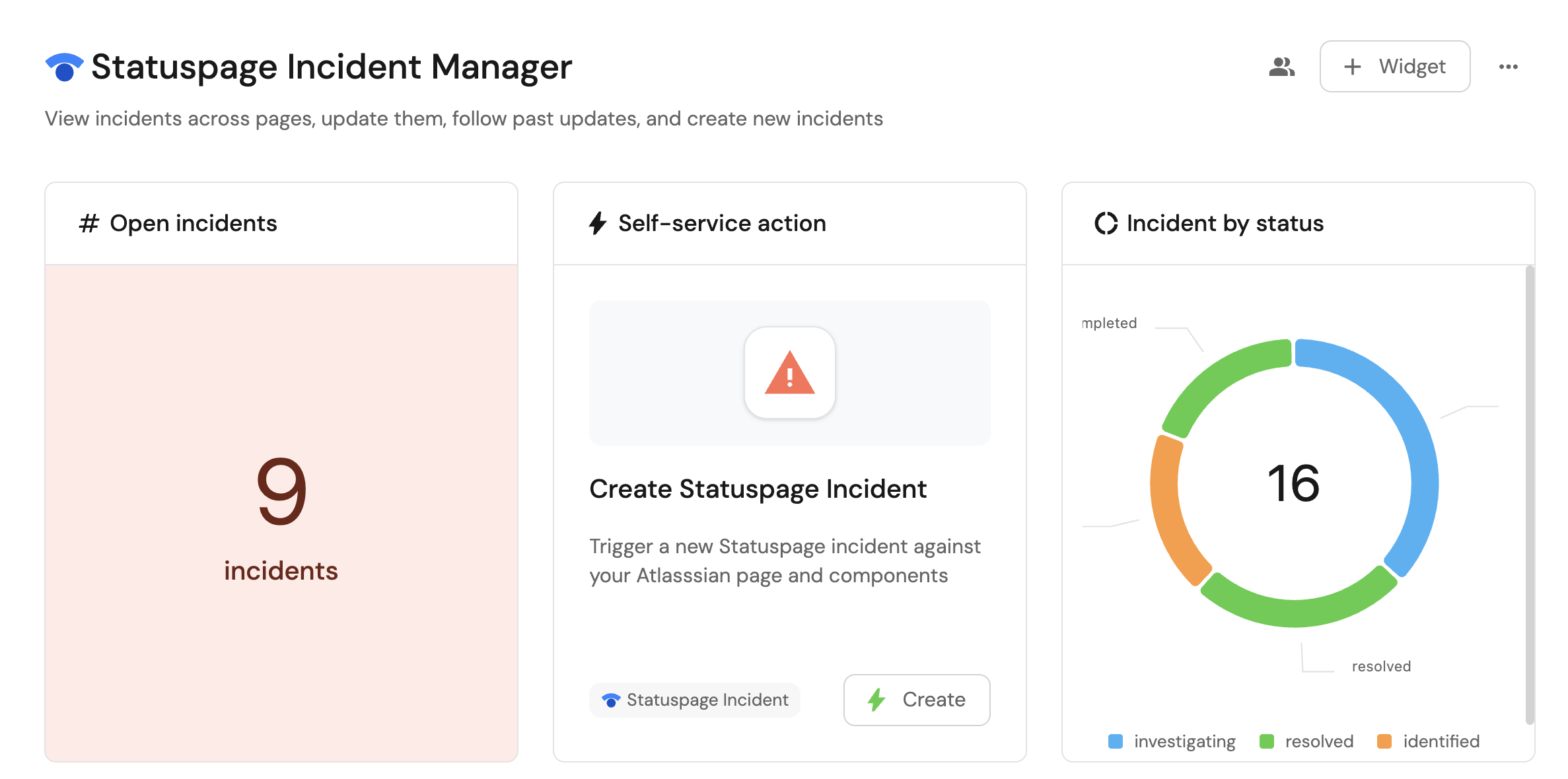

Build dashboards in Port to monitor and act on both incidents and components.

Common use cases

Monitor and manage all Statuspage incidents and components from a centralized dashboard.
Empower teams to create and update incidents through self-service actions.
Automate component status updates and incident management workflows.

Prerequisites

This guide assumes the following:

You have a Port account and have completed the onboarding process.
Port's Statuspage integration is installed in your account.

Set up self-service actions

We will create three self-service actions in Port to directly interact with the Statuspage REST API. These actions will let users create new incidents, update existing incidents, and manage component statuses.

The actions will be configured via JSON and triggered using synced webhooks secured with secrets. To implement this use-case, follow the steps below:

Add Port secrets

To add a secret to your portal:

Click on the ... button in the top right corner of your Port application.
Click on Credentials.
Click on the Secrets tab.
Click on + Secret and add the following secret:
- _STATUSPAGE_API_KEY: Your Statuspage API key. Follow the Statuspage documentation on how to create the API key.

Create a new incident

Go to the Self-service page of your portal.
Click on the + New Action button.
Click on the {...} Edit JSON button.

Copy and paste the following JSON configuration into the editor.

Create Statuspage incident action (Click to expand)

{
  "identifier": "create_statuspage_incident",
  "title": "Create Statuspage Incident",
  "icon": "Alert",
  "description": "Trigger a new Statuspage incident against your Atlasssian page and components",
  "trigger": {
    "type": "self-service",
    "operation": "CREATE",
    "userInputs": {
      "properties": {
        "incident_title": {
          "type": "string",
          "title": "Incident Title",
          "description": "Concise title for the incident"
        },
        "incident_message": {
          "type": "string",
          "title": "Incident Description",
          "description": "Detailed description of the incident"
        },
        "incident_severity": {
          "icon": "DefaultProperty",
          "title": "Incident Severity",
          "type": "string",
          "enum": [
            "none",
            "minor",
            "major",
            "critical",
            "maintenance"
          ],
          "enumColors": {
            "none": "lightGray",
            "minor": "yellow",
            "major": "gold",
            "critical": "red",
            "maintenance": "blue"
          }
        },
        "incident_status": {
          "icon": "DefaultProperty",
          "title": "Incident Status",
          "type": "string",
          "enum": [
            "investigating",
            "identified",
            "monitoring",
            "resolved",
            "scheduled",
            "in_progress",
            "verifying",
            "completed"
          ],
          "enumColors": {
            "investigating": "blue",
            "identified": "orange",
            "monitoring": "yellow",
            "resolved": "green",
            "scheduled": "lightGray",
            "in_progress": "blue",
            "verifying": "yellow",
            "completed": "green"
          }
        },
        "status_page": {
          "type": "string",
          "title": "Status Page",
          "blueprint": "statuspage",
          "description": "The status page",
          "format": "entity"
        },
        "impacted_components": {
          "title": "Impacted Components",
          "icon": "DefaultProperty",
          "type": "array",
          "items": {
            "type": "string",
            "format": "entity",
            "blueprint": "statuspageComponent"
          }
        },
        "send_notifications": {
          "type": "boolean",
          "title": "Send Notifications",
          "default": true,
          "description": "Whether or not to deliver notifications to subscribers"
        },
        "scheduled_for": {
          "title": "Scheduled For",
          "icon": "DefaultProperty",
          "type": "string",
          "description": "The timestamp the incident is scheduled for",
          "format": "date-time",
          "visible": {
            "jqQuery": ".form.incident_status | IN(\"scheduled\", \"in_progress\", \"verifying\", \"completed\")"
          }
        },
        "scheduled_until": {
          "type": "string",
          "title": "Scheduled Until",
          "description": "The timestamp the incident is scheduled until",
          "format": "date-time",
          "visible": {
            "jqQuery": ".form.incident_status | IN(\"scheduled\", \"in_progress\", \"verifying\", \"completed\")"
          }
        }
      },
      "required": [
        "incident_title",
        "incident_message",
        "incident_severity",
        "incident_status",
        "impacted_components",
        "send_notifications"
      ],
      "order": [
        "incident_title",
        "incident_message",
        "incident_severity",
        "incident_status",
        "status_page",
        "impacted_components",
        "send_notifications",
        "scheduled_for",
        "scheduled_until"
      ]
    },
    "blueprintIdentifier": "statuspageIncident"
  },
  "invocationMethod": {
    "type": "WEBHOOK",
    "url": "https://api.statuspage.io/v1/pages/{{.inputs.status_page.identifier}}/incidents",
    "agent": false,
    "synchronized": true,
    "method": "POST",
    "headers": {
      "Content-Type": "application/json",
      "Authorization": "OAuth {{.secrets._STATUSPAGE_API_KEY}}"
    },
    "body": {
      "incident": {
        "name": "{{ .inputs.incident_title }}",
        "body": "{{ .inputs.incident_message }}",
        "status": "{{ .inputs.incident_status }}",
        "impact_override": "{{ .inputs.incident_severity }}",
        "deliver_notifications": "{{ .inputs.send_notifications }}",
        "component_ids": "{{ .inputs.impacted_components | map(.identifier) }}",
        "{{ if (.inputs | has(\"scheduled_for\")) then \"scheduled_for\" else null end }}": "{{ if (.inputs | has(\"scheduled_for\")) then .inputs.scheduled_for else null end }}",
        "{{ if (.inputs | has(\"scheduled_until\")) then \"scheduled_until\" else null end }}": "{{ if (.inputs | has(\"scheduled_until\")) then .inputs.scheduled_until else null end }}",
        "metadata": {
          "port": {
            "runId": "{{ .run.id }}",
            "triggeredBy": "{{ .trigger.by.user.email }}"
          }
        }
      }
    }
  },
  "requiredApproval": false
}

Click Save.

Update incident status

Go to the Self-service page of your portal.
Click on the + New Action button.
Click on the {...} Edit JSON button.

Copy and paste the following JSON configuration into the editor.

Update Statuspage incident status action (Click to expand)

{
  "identifier": "update_statuspage_incident",
  "title": "Update Statuspage Incident",
  "icon": "Alert",
  "description": "Update the status of an existing Statuspage incident",
  "trigger": {
    "type": "self-service",
    "operation": "DAY-2",
    "userInputs": {
      "properties": {
        "new_incident_status": {
          "icon": "DefaultProperty",
          "title": "New Incident Status",
          "type": "string",
          "enum": [
            "investigating",
            "identified",
            "monitoring",
            "resolved"
          ],
          "enumColors": {
            "investigating": "blue",
            "identified": "orange",
            "monitoring": "yellow",
            "resolved": "green"
          }
        },
        "update_message": {
          "type": "string",
          "title": "Update Message (Optional)"
        }
      },
      "required": [
        "new_incident_status"
      ],
      "order": [
        "new_incident_status",
        "update_message"
      ]
    },
    "blueprintIdentifier": "statuspageIncident"
  },
  "invocationMethod": {
    "type": "WEBHOOK",
    "url": "https://api.statuspage.io/v1/pages/{{.entity.relations.statuspage}}/incidents/{{.entity.identifier}}",
    "agent": false,
    "synchronized": true,
    "method": "PATCH",
    "headers": {
      "Content-Type": "application/json",
      "Authorization": "OAuth {{.secrets._STATUSPAGE_API_KEY}}"
    },
    "body": {
      "incident": {
        "status": "{{ .inputs.new_incident_status }}",
        "{{ if (.inputs | has(\"update_message\")) then \"body\" else null end }}": "{{ if (.inputs | has(\"update_message\")) then .inputs.update_message else null end }}",
        "metadata": {
          "port": {
            "runId": "{{ .run.id }}",
            "triggeredBy": "{{ .trigger.by.user.email }}"
          }
        }
      }
    }
  },
  "requiredApproval": false
}

Click Save.

Update component status

Go to the Self-service page of your portal.
Click on the + New Action button.
Click on the {...} Edit JSON button.

Copy and paste the following JSON configuration into the editor.

Update Statuspage component status action (Click to expand)

{
  "identifier": "update_status_page_component",
  "title": "Update Statuspage Component Status",
  "icon": "StatusPage",
  "description": "Updates the status of an existing Statuspage component",
  "trigger": {
    "type": "self-service",
    "operation": "DAY-2",
    "userInputs": {
      "properties": {
        "status": {
          "type": "string",
          "title": "Status",
          "enum": [
            "operational",
            "degraded_performance",
            "partial_outage",
            "major_outage",
            "under_maintenance"
          ],
          "enumColors": {
            "operational": "green",
            "degraded_performance": "yellow",
            "partial_outage": "orange",
            "major_outage": "red",
            "under_maintenance": "blue"
          }
        }
      },
      "required": [
        "status"
      ],
      "order": [
        "status"
      ]
    },
    "blueprintIdentifier": "statuspageComponent"
  },
  "invocationMethod": {
    "type": "WEBHOOK",
    "url": "https://api.statuspage.io/v1/pages/{{.entity.relations.statuspage}}/components/{{.entity.identifier}}",
    "agent": false,
    "synchronized": true,
    "method": "PATCH",
    "headers": {
      "Content-Type": "application/json",
      "Authorization": "OAuth {{.secrets._STATUSPAGE_API_KEY}}"
    },
    "body": {
      "component": {
        "status": "{{ .inputs.status }}"
      }
    }
  },
  "requiredApproval": false
}

Click Save.

Now you should see the Create Statuspage Incident, Update Statuspage Incident and Update Statuspage Component Status actions in the self-service page. 🎉

Set up automation

We will create an automation to reflect incident changes in Port's software catalog. This ensures that our dashboards always show the most up-to-date information.

Go to the Automations page of your portal.
Click on the + New Automation button.
Click on the {...} Edit JSON button.

Copy and paste the following JSON configurations into the editor while clicking Save for each configuration.

Statuspage incident creation automation (Click to expand)

{
  "identifier": "statuspage_incident_sync_status",
  "title": "Create Statuspage Incident in Port",
  "description": "Reflects Statuspage incident changes in Port",
  "trigger": {
    "type": "automation",
    "event": {
      "type": "RUN_UPDATED",
      "actionIdentifier": "create_statuspage_incident"
    },
    "condition": {
      "type": "JQ",
      "expressions": [
        ".diff.after.status == \"SUCCESS\""
      ],
      "combinator": "and"
    }
  },
  "invocationMethod": {
    "type": "UPSERT_ENTITY",
    "blueprintIdentifier": "statuspageIncident",
    "mapping": {
      "identifier": "{{.event.diff.after.response.id}}",
      "title": "{{.event.diff.after.response.name}}",
      "properties": {
        "status": "{{.event.diff.after.response.status}}",
        "impact": "{{.event.diff.after.response.impact}}",
        "createdAt": "{{.event.diff.after.response.created_at}}",
        "updatedAt": "{{.event.diff.after.response.updated_at}}",
        "startedAt": "{{.event.diff.after.response.started_at}}",
        "resolvedAt": "{{.event.diff.after.response.resolved_at}}",
        "shortlink": "{{.event.diff.after.response.shortlink}}",
        "scheduled_for": "{{.event.diff.after.response.scheduled_for}}",
        "scheduled_until": "{{.event.diff.after.response.scheduled_until}}",
        "scheduled_remind_prior": "{{.event.diff.after.response.scheduled_remind_prior}}",
        "scheduled_reminded_at": "{{.event.diff.after.response.scheduled_reminded_at}}",
        "impact_override": "{{.event.diff.after.response.impact_override}}",
        "scheduled_auto_in_progress": "{{.event.diff.after.response.scheduled_auto_in_progress}}",
        "scheduled_auto_completed": "{{.event.diff.after.response.scheduled_auto_completed}}",
        "metadata": "{{.event.diff.after.response.metadata}}",
        "reminder_intervals": "{{.event.diff.after.response.reminder_intervals}}",
        "postmortem_body": "{{.event.diff.after.response.postmortem_body}}",
        "postmortem_body_last_updated_at": "{{.event.diff.after.response.postmortem_body_last_updated_at}}",
        "postmortem_ignored": "{{.event.diff.after.response.postmortem_ignored}}",
        "postmortem_published_at": "{{.event.diff.after.response.postmortem_published_at}}",
        "postmortem_notified_subscribers": "{{.event.diff.after.response.postmortem_notified_subscribers}}",
        "postmortem_notified_twitter": "{{.event.diff.after.response.postmortem_notified_twitter}}"
      },
      "relations": {
        "statuspage": "{{.event.diff.after.response.page_id}}",
        "components": "{{.event.diff.after.response.components | map(.id)  }}"
      }
    }
  },
  "publish": true
}

Statuspage incident status update automation (Click to expand)

{
  "identifier": "statuspage_incident_update_sync_status",
  "title": "Update Statuspage Incident Status in Port",
  "description": "Reflect the status of the Statuspage incident in Port",
  "trigger": {
    "type": "automation",
    "event": {
      "type": "RUN_UPDATED",
      "actionIdentifier": "update_statuspage_incident"
    },
    "condition": {
      "type": "JQ",
      "expressions": [
        ".diff.after.status == \"SUCCESS\""
      ],
      "combinator": "and"
    }
  },
  "invocationMethod": {
    "type": "UPSERT_ENTITY",
    "blueprintIdentifier": "statuspageIncident",
    "mapping": {
      "identifier": "{{.event.diff.after.response.id}}",
      "properties": {
        "status": "{{.event.diff.after.response.status}}"
      }
    }
  },
  "publish": true
}

Visualize metrics

With incidents and components ingested and actions configured, the next step is building dashboards to monitor Statuspage data directly in Port. We can visualize all incidents and components using customizable widgets and trigger remediation workflows right from your dashboard.

Create a dashboard

Navigate to the Catalog page of your portal.
Click on the + New button in the left sidebar.
Select New dashboard.
Name the dashboard Statuspage Incident and Component Manager.
Input Monitor and manage Statuspage incidents and components across pages under Description.
Select the StatusPage icon.
Click Create.

We now have a blank dashboard where we can start adding widgets to visualize insights from our Statuspage incidents and components.

Add incident widgets

In the new dashboard, create the following incident-related widgets:

Total incidents created in the last month (click to expand)

Click + Widget and select Number Chart.
Title: Incidents in the past month (add the StatusPage icon).
Select Count entities Chart type and choose Statuspage Incident as the Blueprint.
Select count for the Function.

Add this JSON to the Additional filters editor to filter incidents created in the last month:

[
    {
        "combinator":"and",
        "rules":[
            {
                "property":"createdAt",
                "operator":"between",
                "value":{
                "preset":"lastMonth"
                }
            }
        ]
    }
]

Select custom as the Unit and input incidents as the Custom unit
Click Save.

Total resolved incidents (click to expand)

Click + Widget and select Number Chart.
Title: Resolved incidents (add the StatusPage icon).
Select Count entities Chart type and choose Statuspage Incident as the Blueprint.
Select count for the Function.

Add this JSON to the Additional filters editor to filter resolved and completed incidents:

[
    {
        "combinator":"and",
        "rules":[
            {
                "property":"status",
                "operator":"in",
                "value":["resolved", "completed"]
            }
        ]
    }
]

Select custom as the Unit and input incidents as the Custom unit
Click Save.

Total open incidents (click to expand)

Click + Widget and select Number Chart.
Title: Open incidents (add the StatusPage icon).
Select Count entities Chart type and choose Statuspage Incident as the Blueprint.
Select count for the Function.

Add this JSON to the Additional filters editor to filter non-resolved incidents:

[
    {
        "combinator":"and",
        "rules":[
            {
                "property":"status",
                "operator":"notIn",
                "value":["resolved", "completed"]
            }
        ]
    }
]

Select custom as the Unit and input incidents as the Custom unit
Click Save.

Incidents by status (click to expand)

Click + Widget and select Pie chart.
Title: Incidents by status (add the StatusPage icon).
Choose the Statuspage Incident blueprint.
Under Breakdown by property, select the Status property
Click Save.

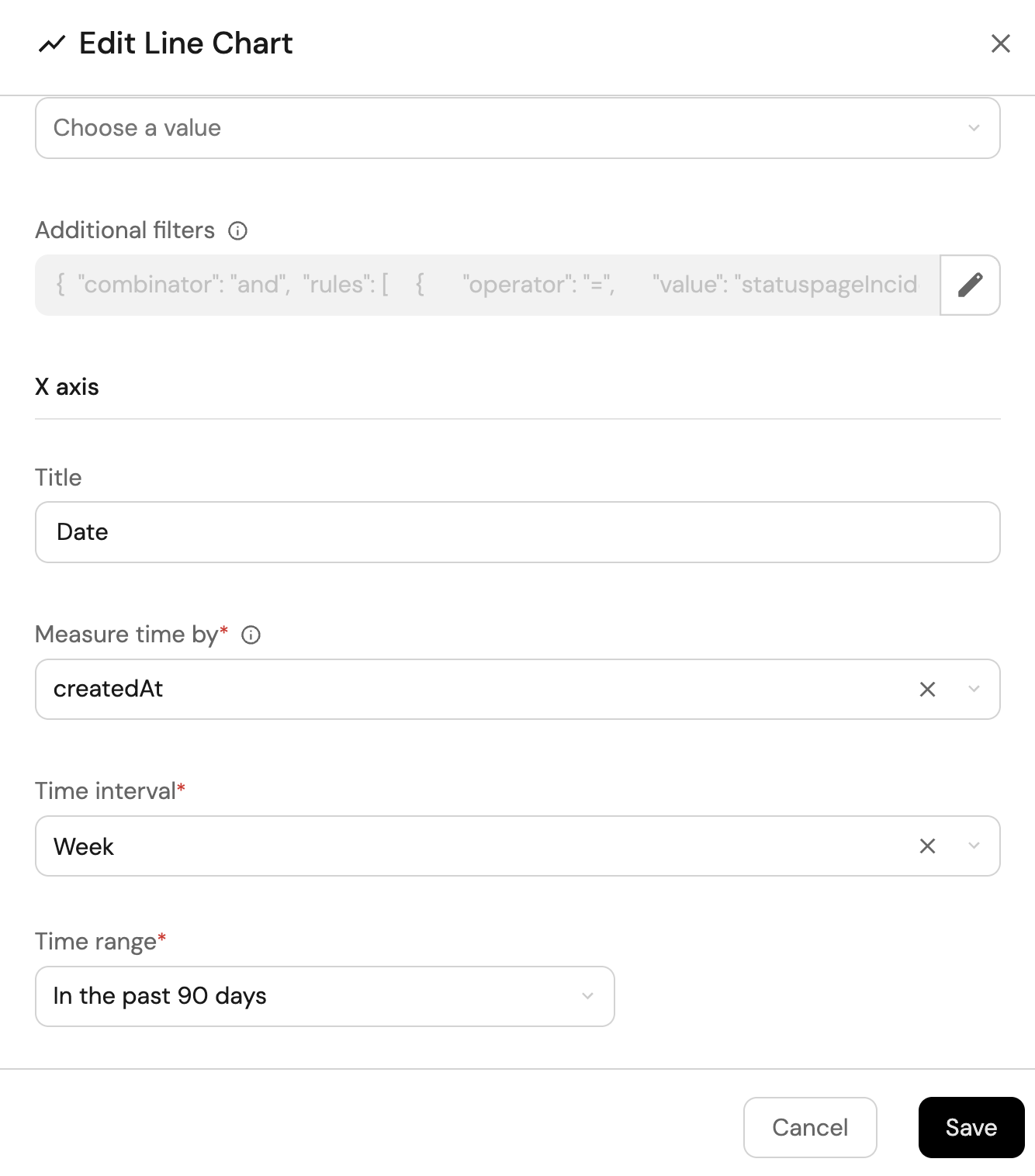

Incidents over time (click to expand)

Click + Widget and select Line Chart.
Title: Incidents over time, (add the LineChart icon).
Select Count Entities (All Entities) Chart type and choose Statuspage Incident as the Blueprint.
Input Number of incidents as the Y axis Title.
Set count as the Function.
Input Date as the X axis Title and choose createdAt as the Measure time by.
Set Time Interval to Week and Time Range to In the past 90 days.
Click Save.

Create incident action (click to expand)

Click + Widget and select Action card.
Choose the Create Statuspage Incident action we created in this guide
Click Save.

All Incidents in the past month table (click to expand)

Click + Widget and select Table.
Title the widget Incidents in the past month.
Choose the Statuspage Incident blueprint

Add this JSON to the Additional filters editor to filter incidents created in the last month:

{
  "combinator": "and",
  "rules": [
    {
      "operator": "between",
      "property": "createdAt",
      "value": {
        "preset": "lastMonth"
      }
    },
    {
      "operator": "=",
      "value": "statuspageIncident",
      "property": "$blueprint"
    }
  ]
}

Click Save to add the widget to the dashboard.
Click on the ... button in the top right corner of the table and select Customize table.
In the top right corner of the table, click on Manage Properties and add the following properties:
- Status: The current status of the incident.
- Impact: The impact level of the incident
- Message: The incident message.
- Created At: The date the incident was created.
- Updated At: The date the incident was last updated.
- Status Page: The related Statuspage.
- Components: The affected components.
Click on the save icon in the top right corner of the widget to save the customized table.

Add component widgets

Now add the following component-related widgets to the same dashboard:

Total affected components (click to expand)

Click + Widget and select Number Chart.
Title: Affected components (add the StatusPage icon).
Select Count entities Chart type and choose Statuspage Component as the Blueprint.
Select count for the Function.

Add this JSON to the Additional filters editor to filter non operational components:

[
    {
        "combinator":"and",
        "rules":[
            {
                "property":"status",
                "operator":"!=",
                "value":"operational"
            }
        ]
    }
]

Select custom as the Unit and input components as the Custom unit
Click Save.

Total operational components (click to expand)

Click + Widget and select Number Chart.
Title: Total operational components (add the StatusPage icon).
Select Count entities Chart type and choose Statuspage Component as the Blueprint.
Select count for the Function.

Add this JSON to the Additional filters editor to filter operational components:

[
    {
        "combinator":"and",
        "rules":[
            {
                "property":"status",
                "operator":"=",
                "value":"operational"
            }
        ]
    }
]

Select custom as the Unit and input components as the Custom unit
Click Save.

Components by status (click to expand)

Click + Widget and select Pie chart.
Title: Components by status (add the StatusPage icon).
Choose the Statuspage Component blueprint.
Under Breakdown by property, select the Current Status property
Click Save.

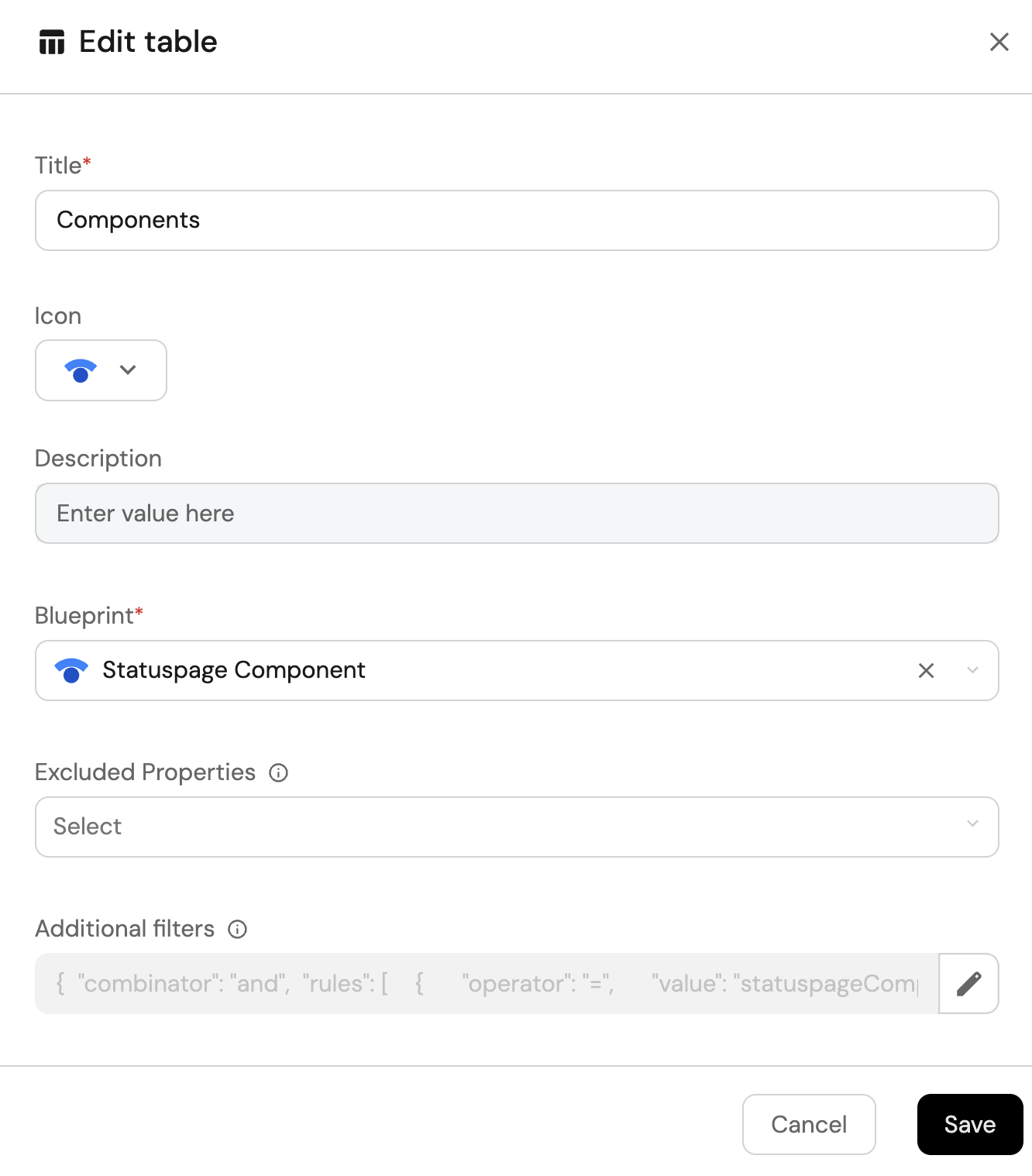

All StatusPage components view (click to expand)

Click + Widget and select Table.
Title the widget All Components.
Choose the Statuspage Component blueprint
Click Save to add the widget to the dashboard.
Click on the ... button in the top right corner of the table and select Customize table.
In the top right corner of the table, click on Manage Properties and add the following properties:
- Current Status: The current status of the component.
- Description: The description of the component.
- Last Updated At: The date the component was last updated.
- Status Page: The related Statuspage.
Click on the save icon in the top right corner of the widget to save the customized table.

Common use cases​

Prerequisites​

Set up self-service actions​

Add Port secrets​

Create a new incident​

Update incident status​

Update component status​

Set up automation​

Visualize metrics​

Create a dashboard​

Add incident widgets​

Add component widgets​

Common use cases

Prerequisites

Set up self-service actions

Add Port secrets

Create a new incident

Update incident status

Update component status

Set up automation

Visualize metrics

Create a dashboard

Add incident widgets

Add component widgets
